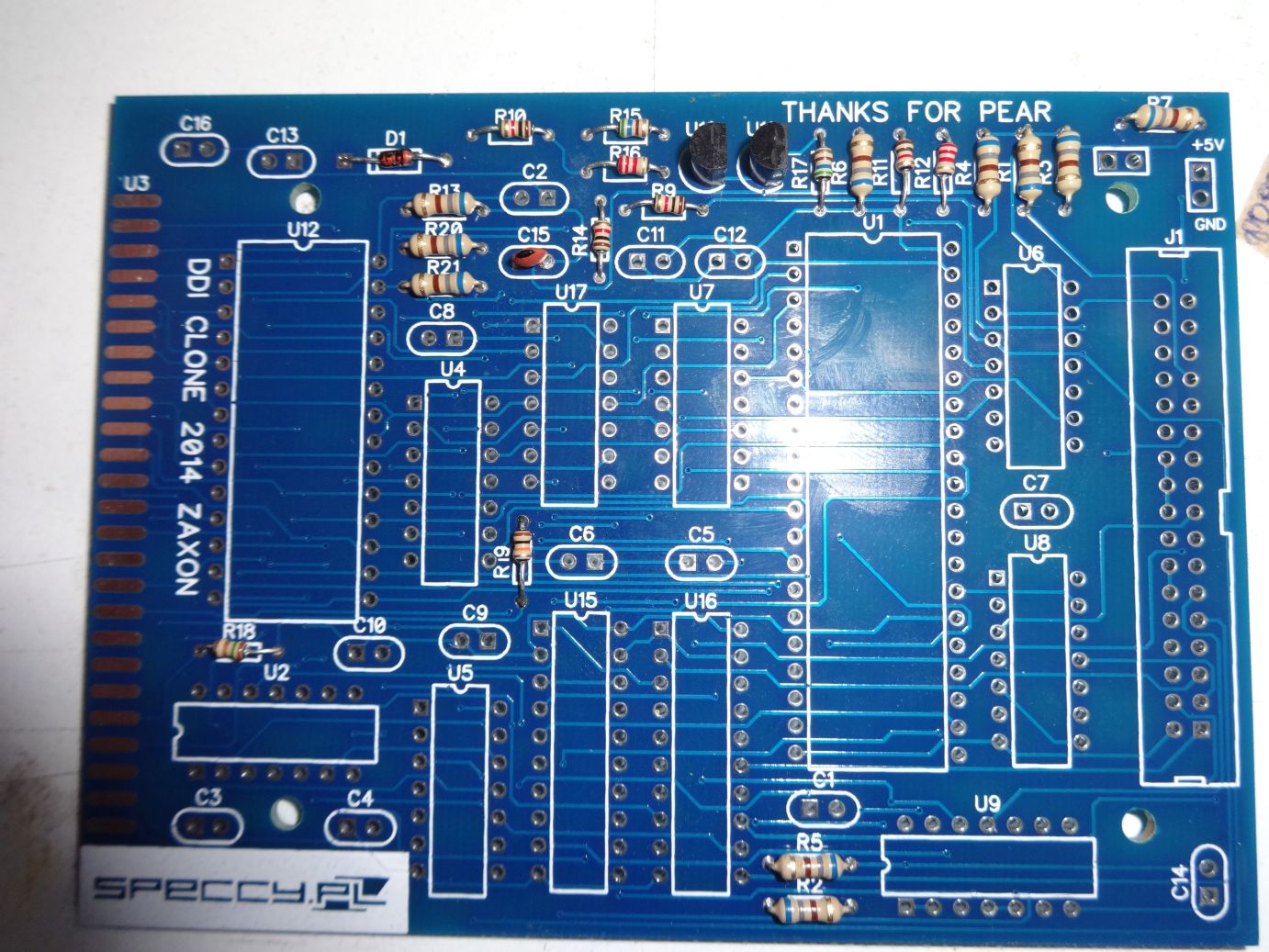

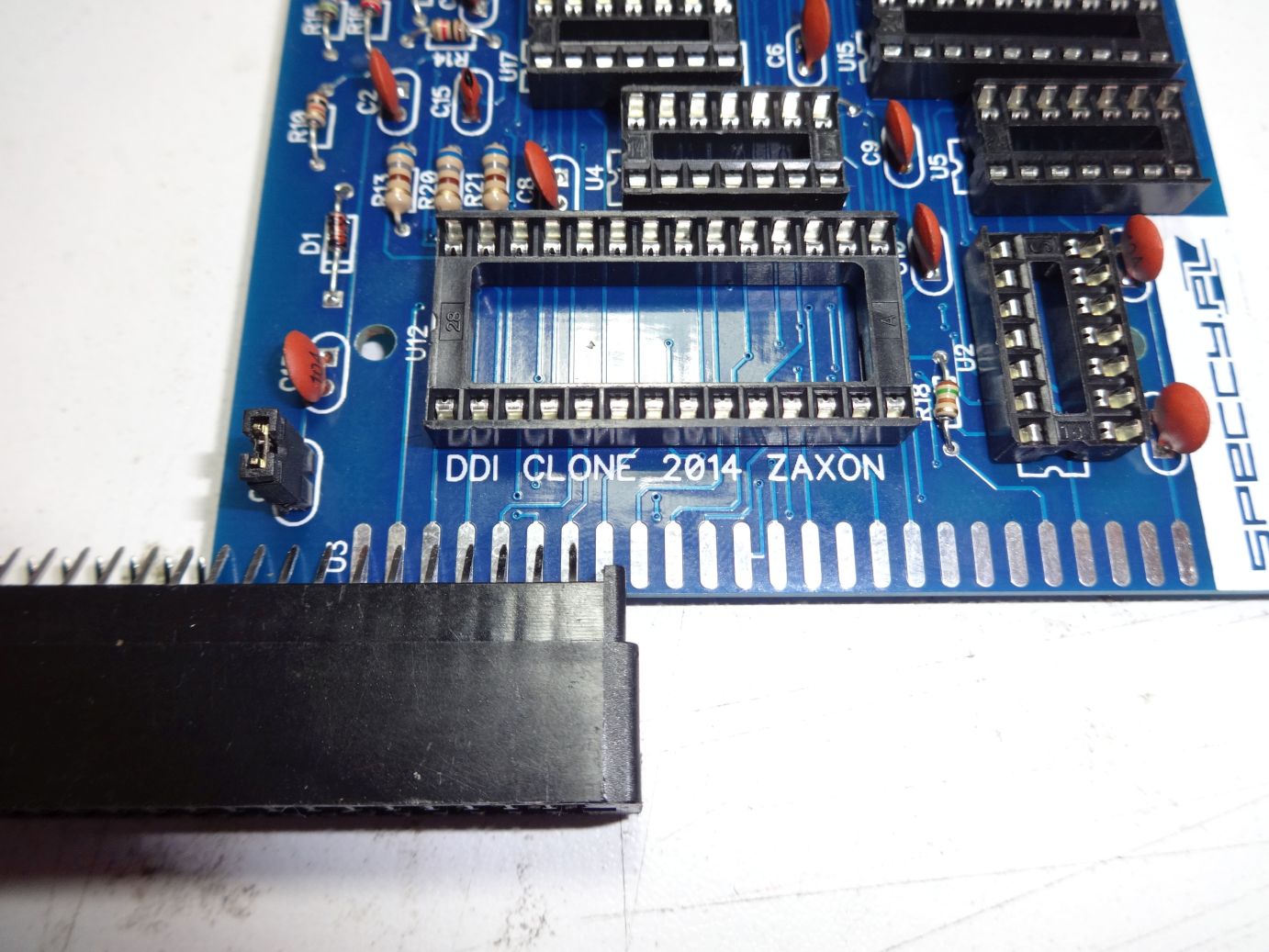

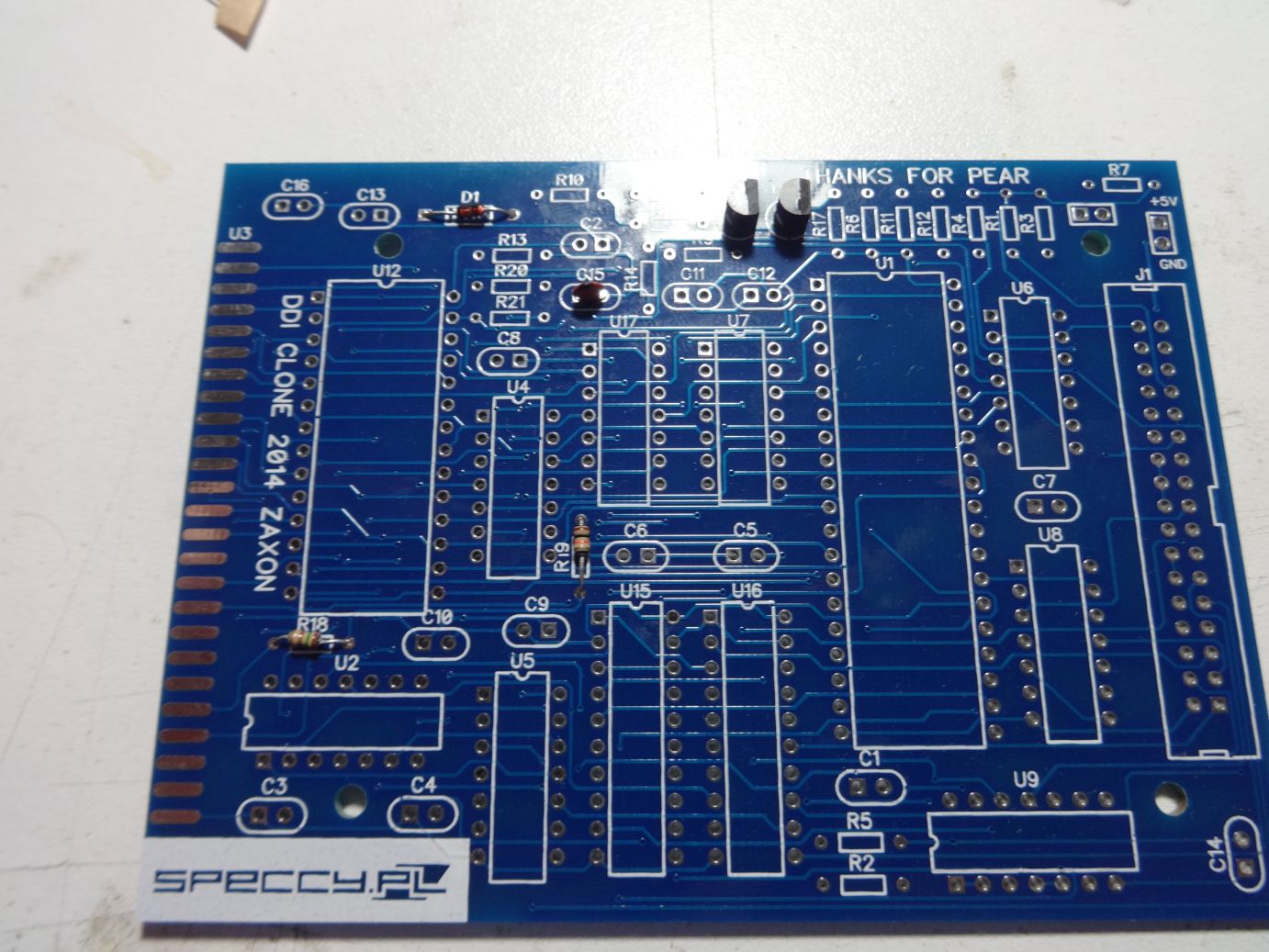

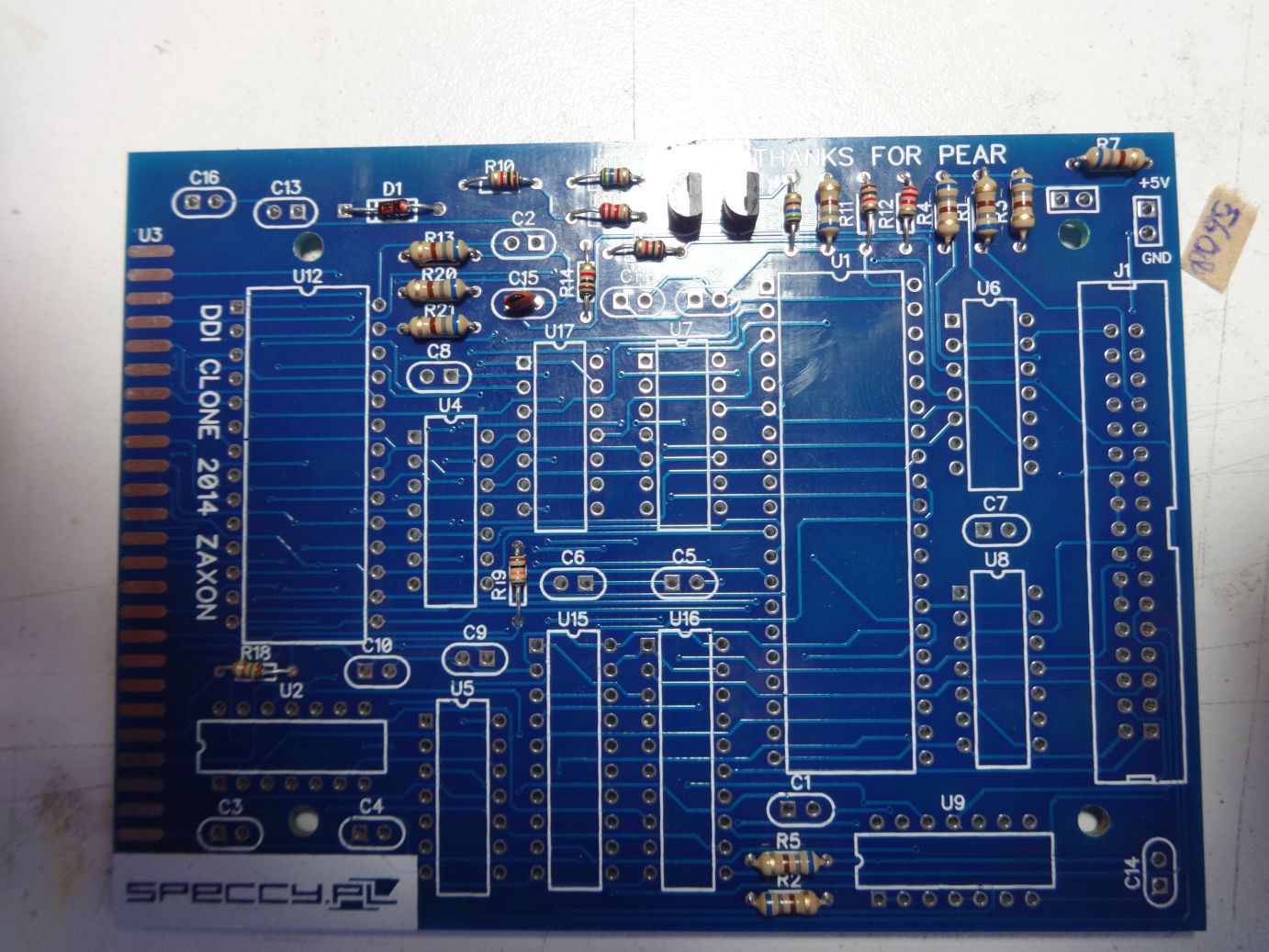

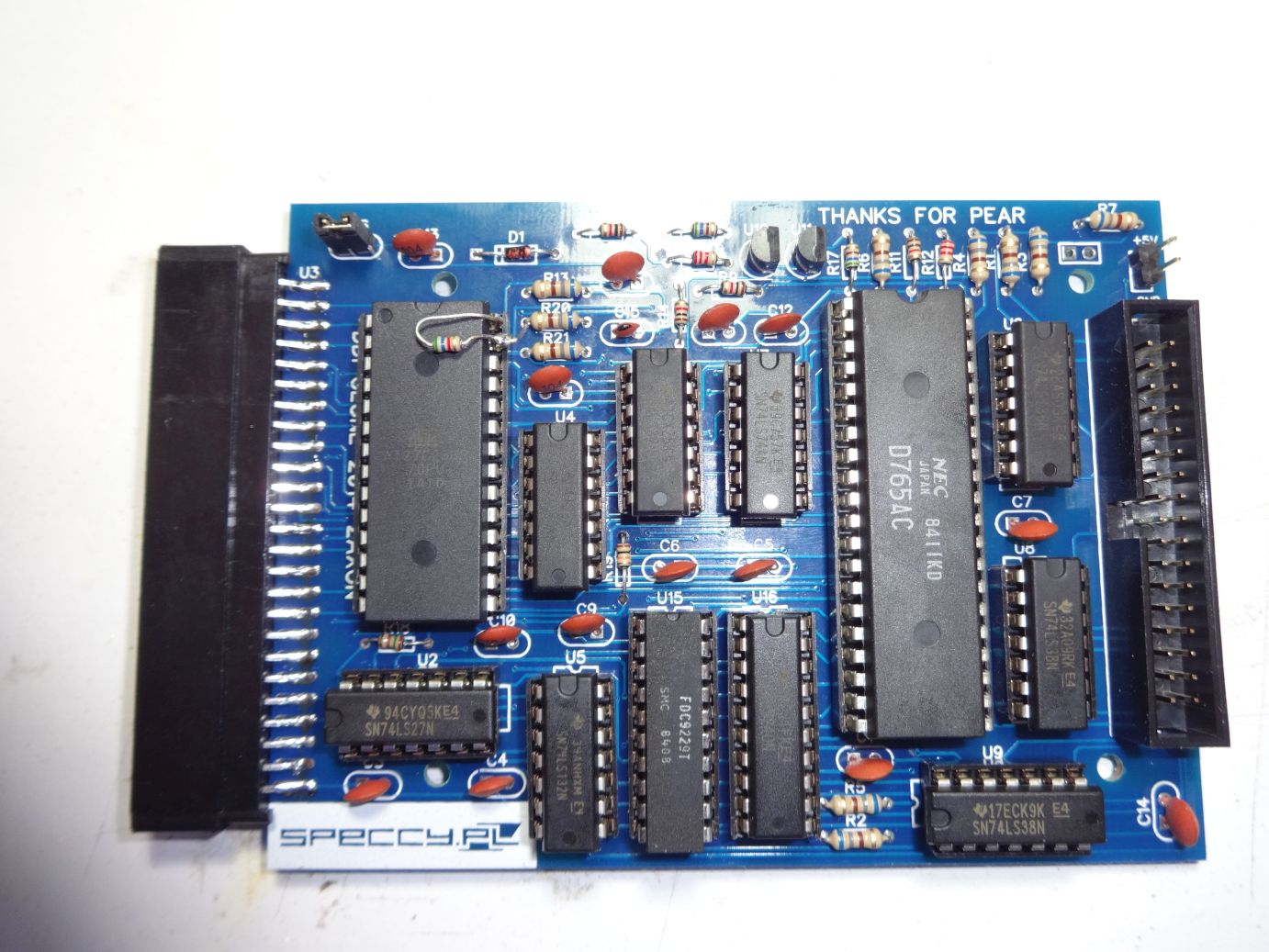

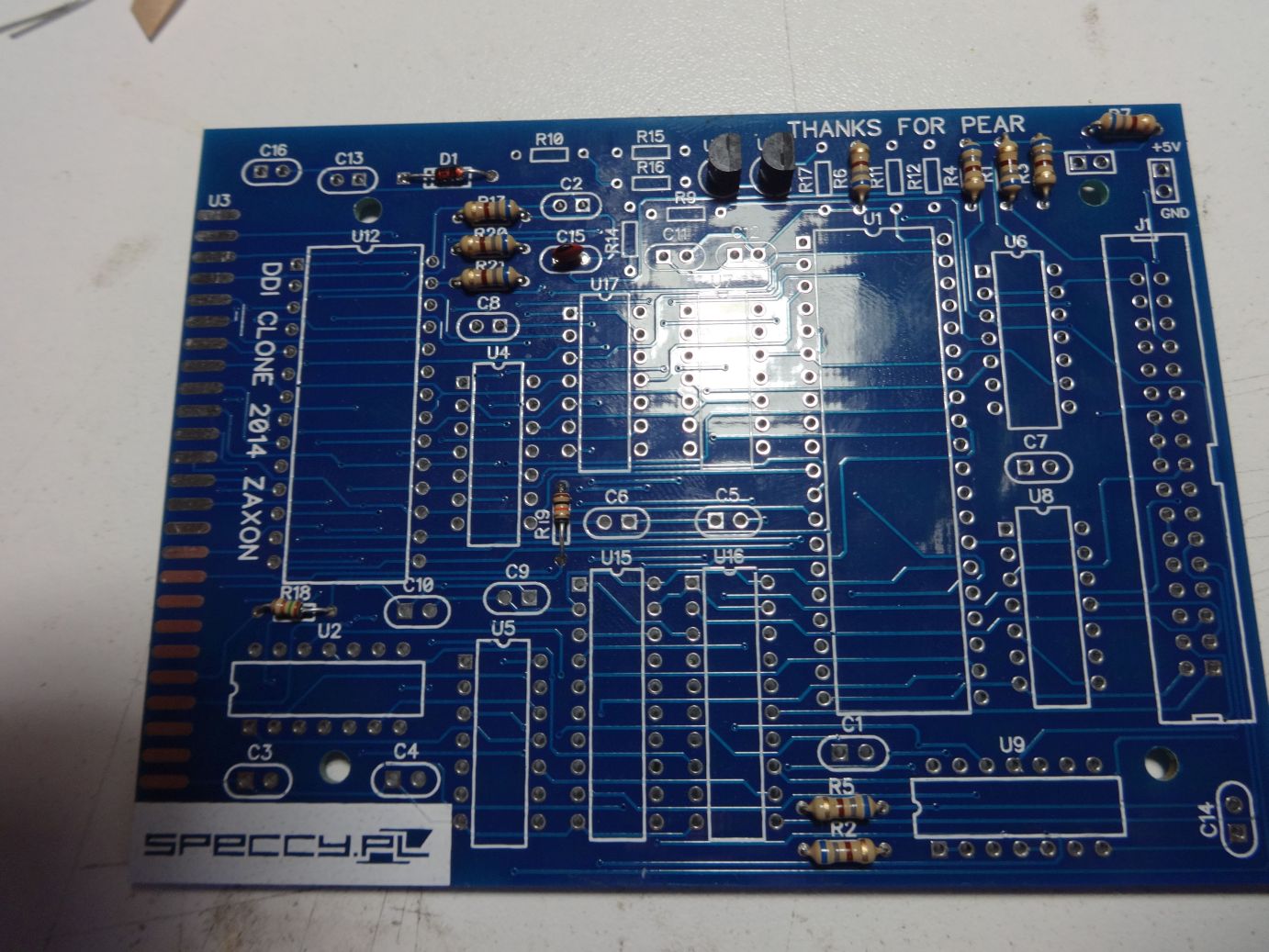

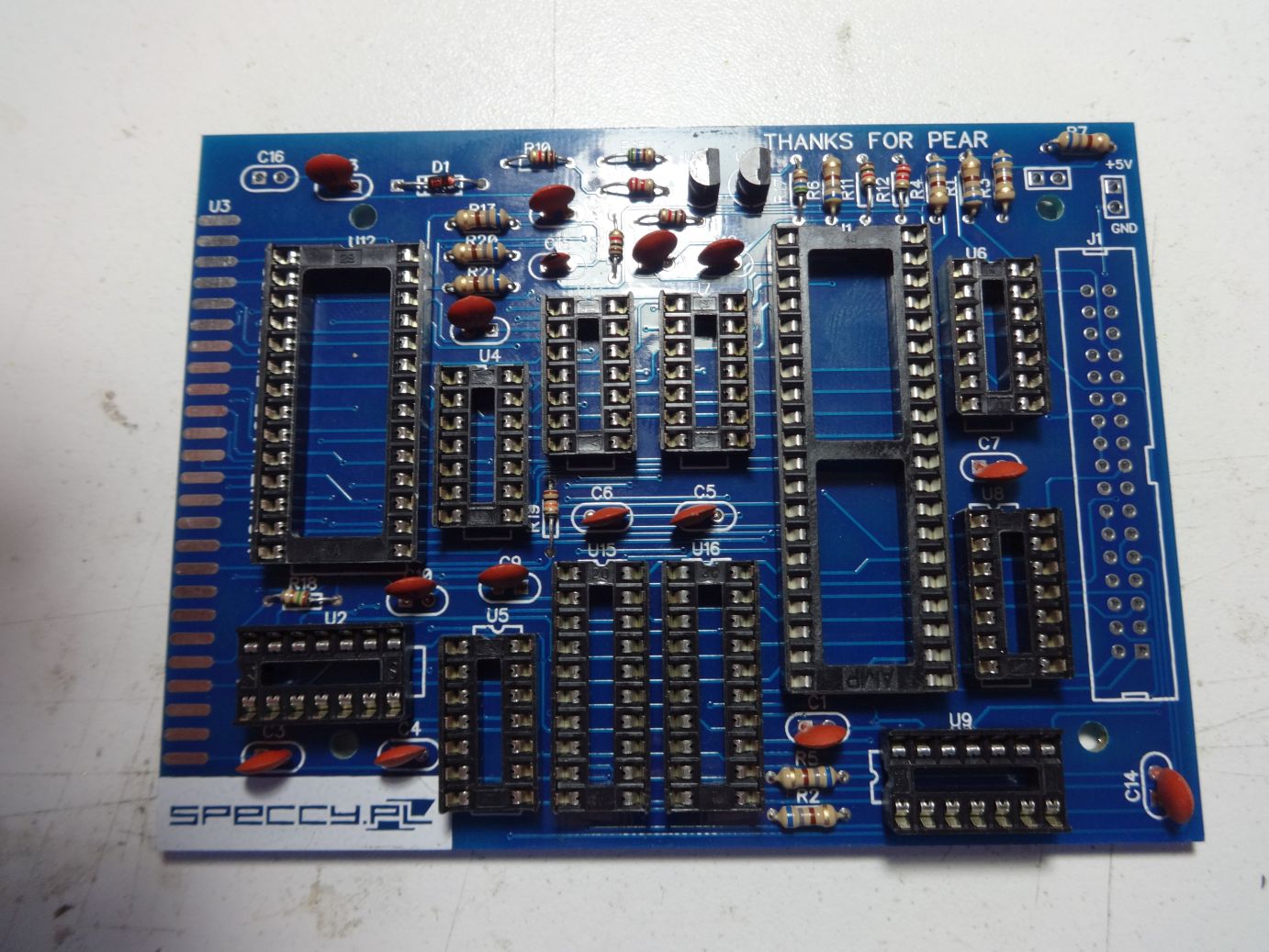

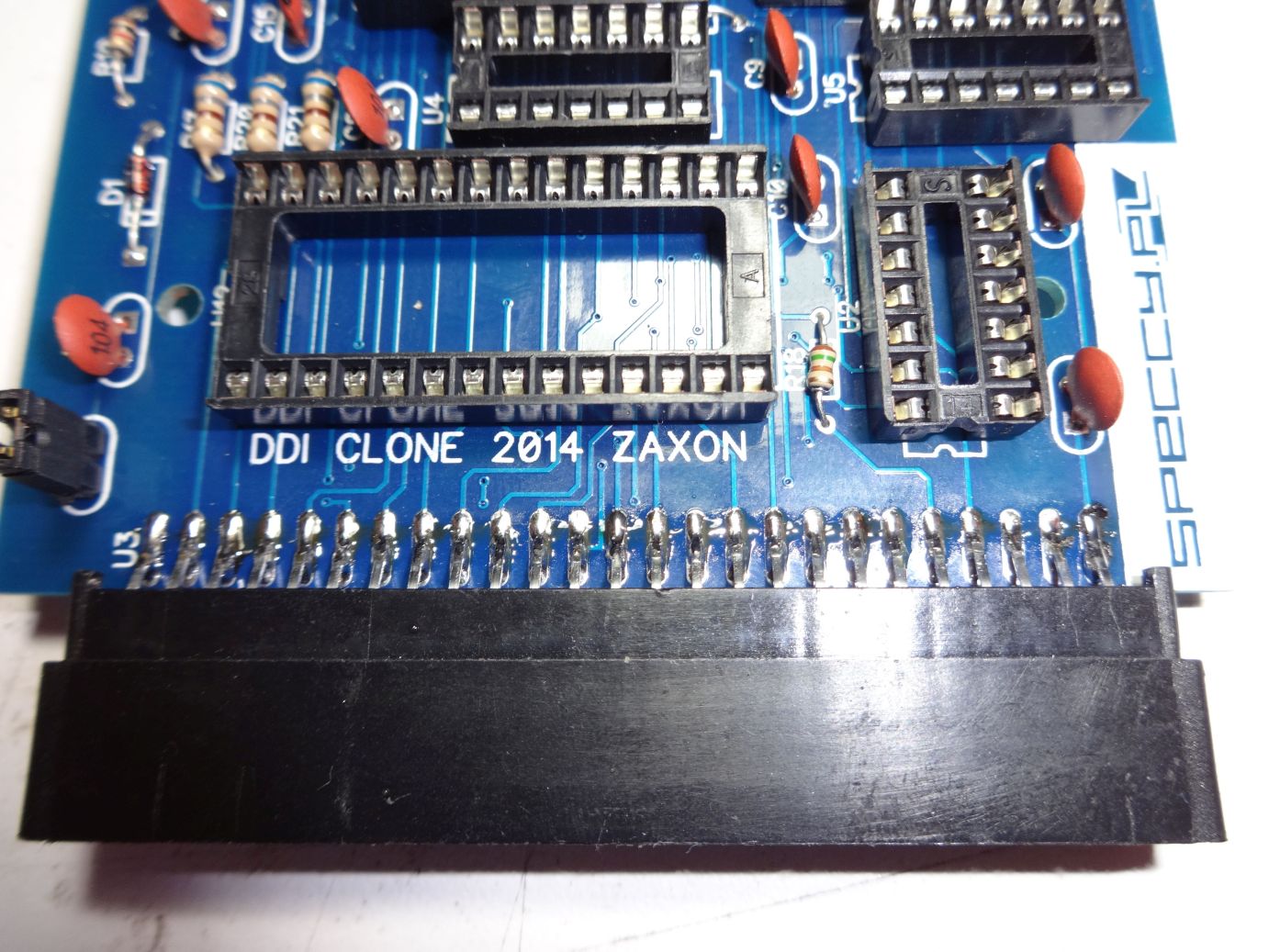

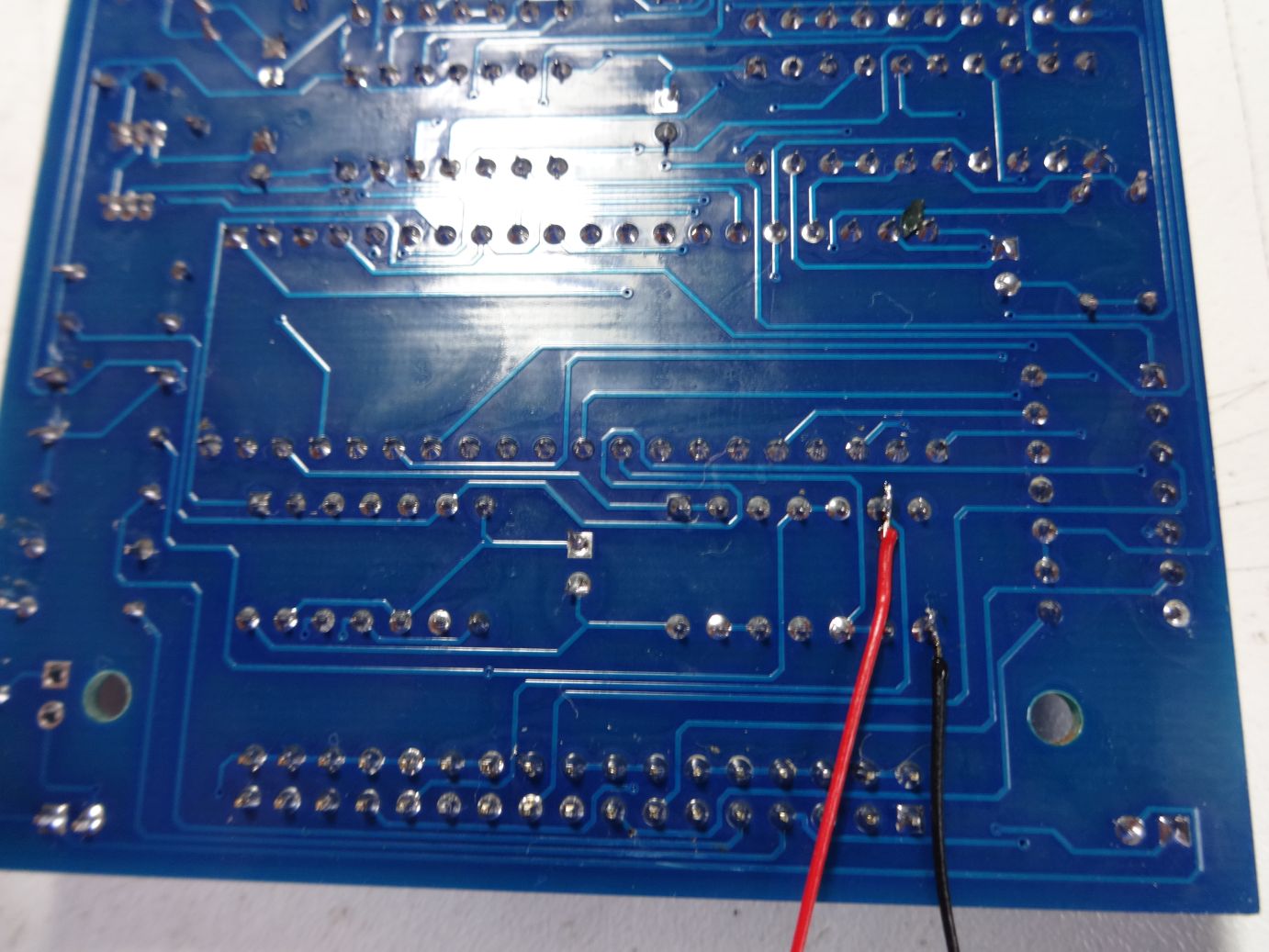

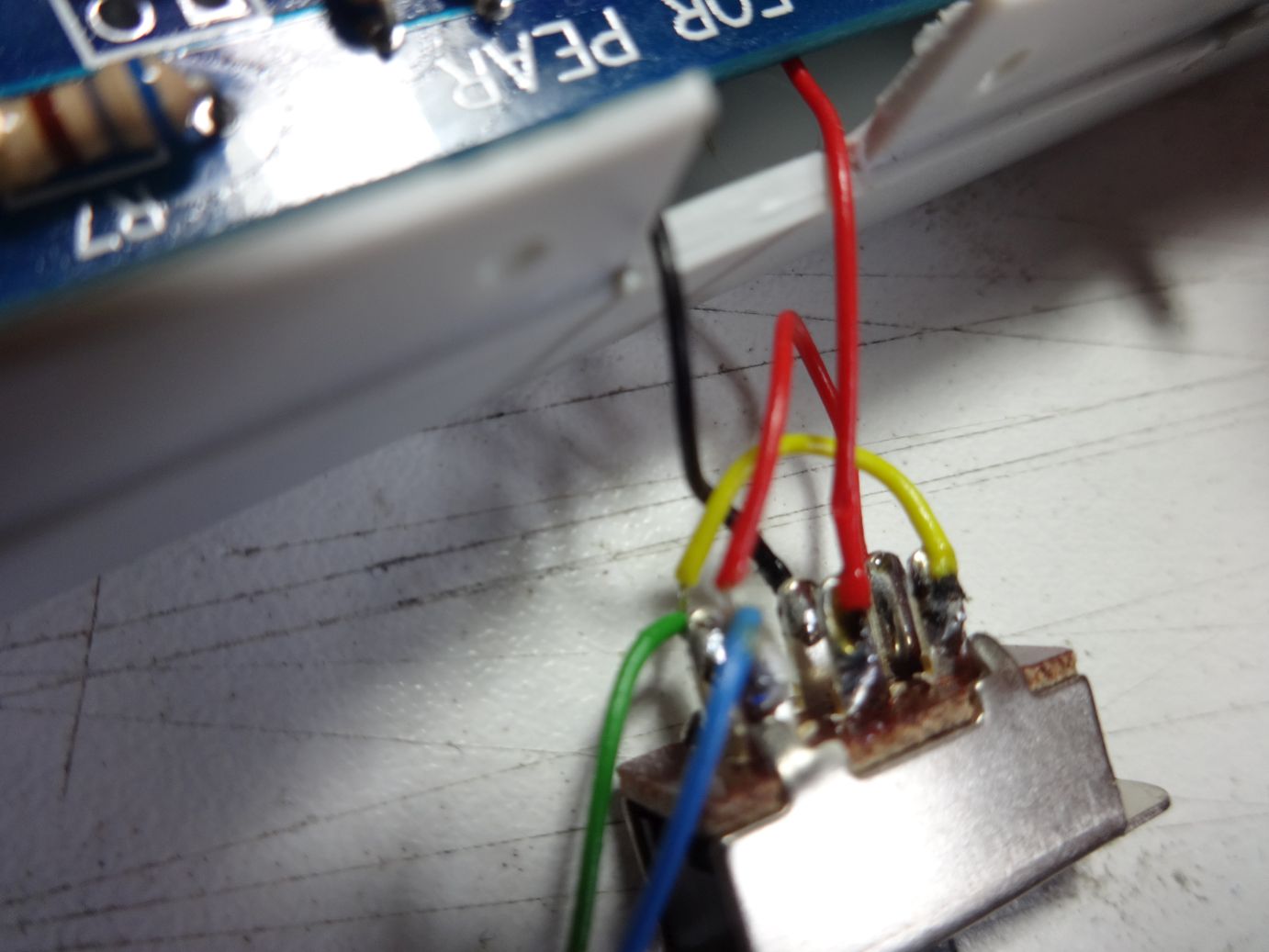

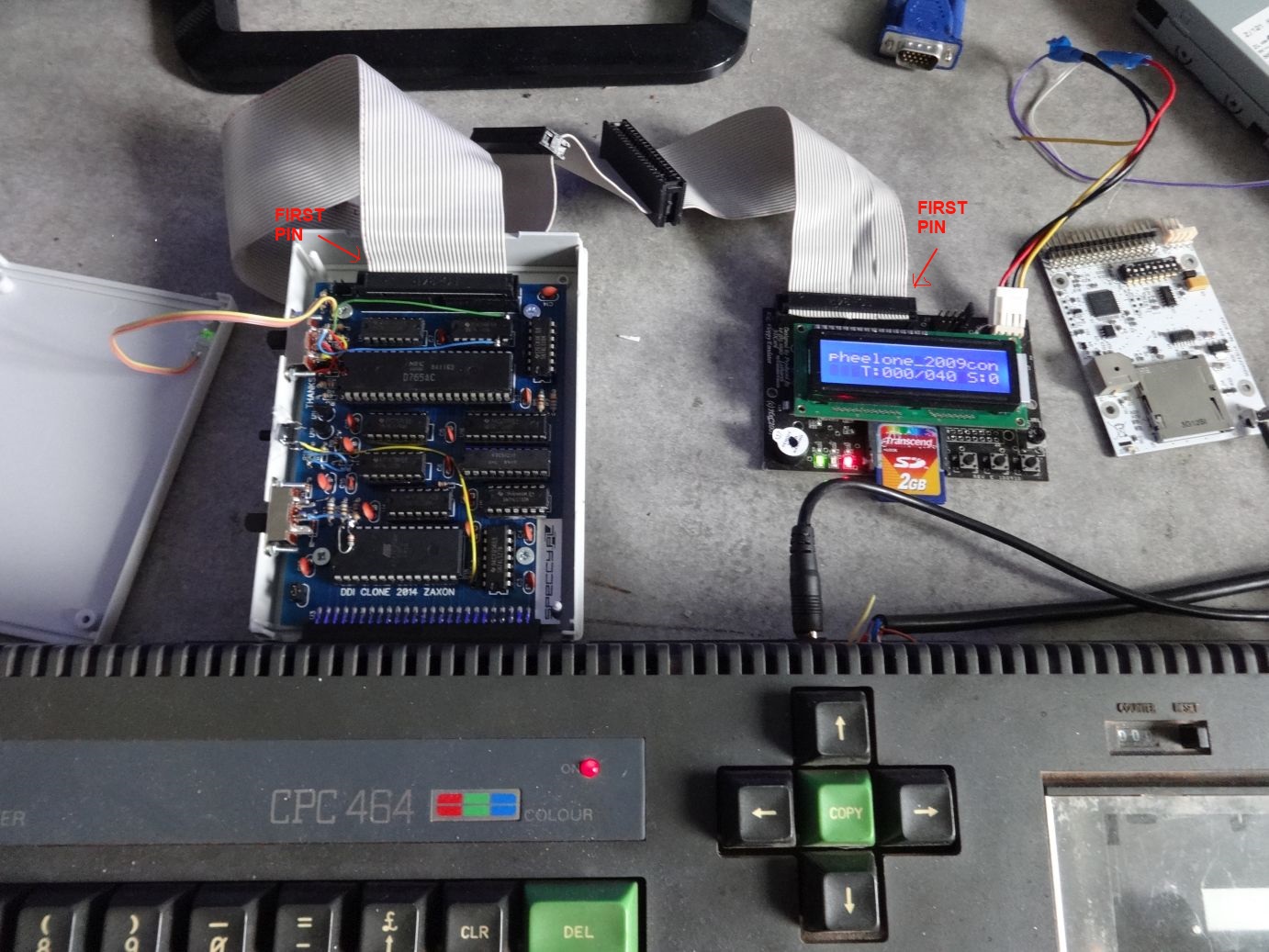

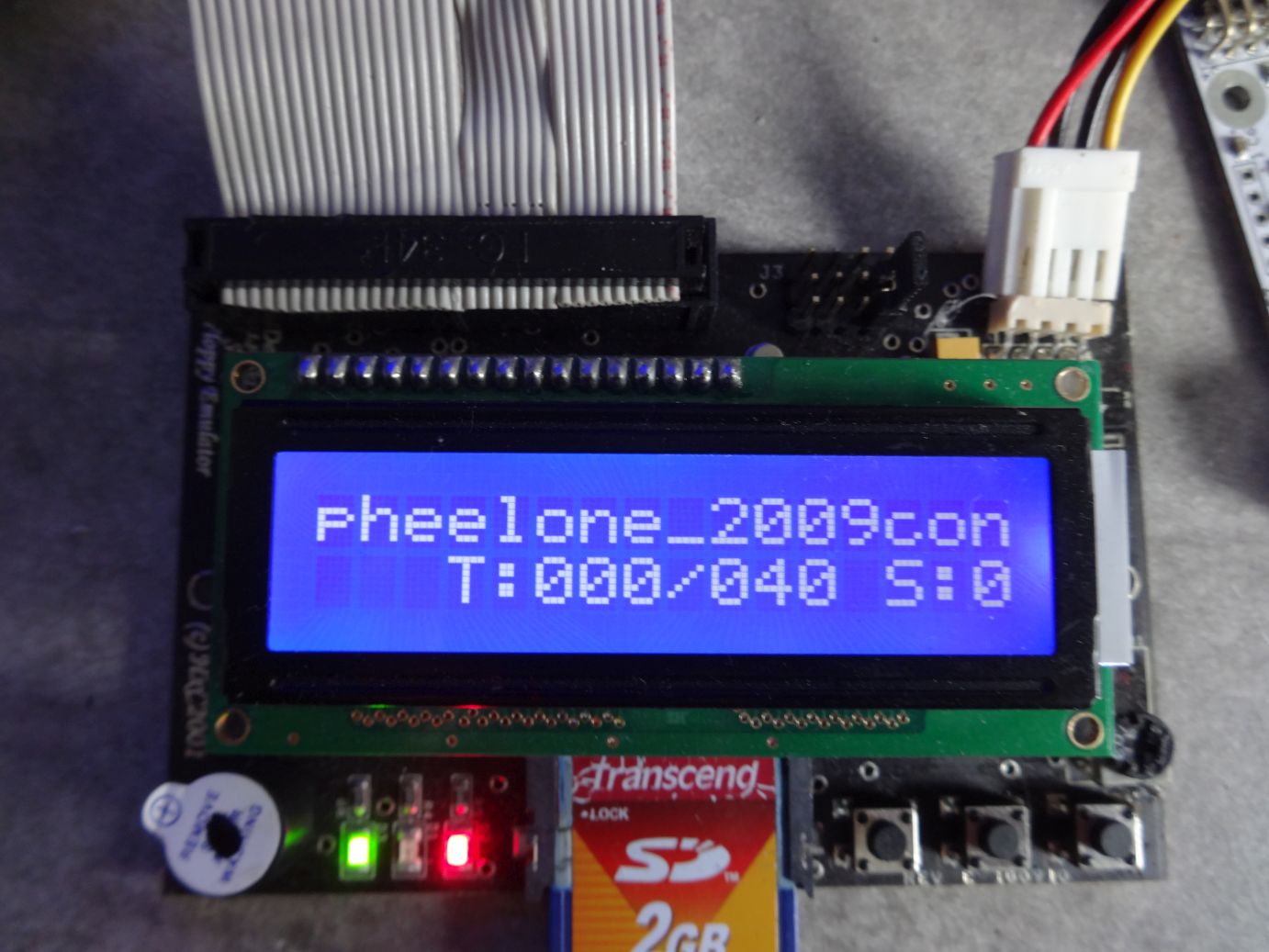

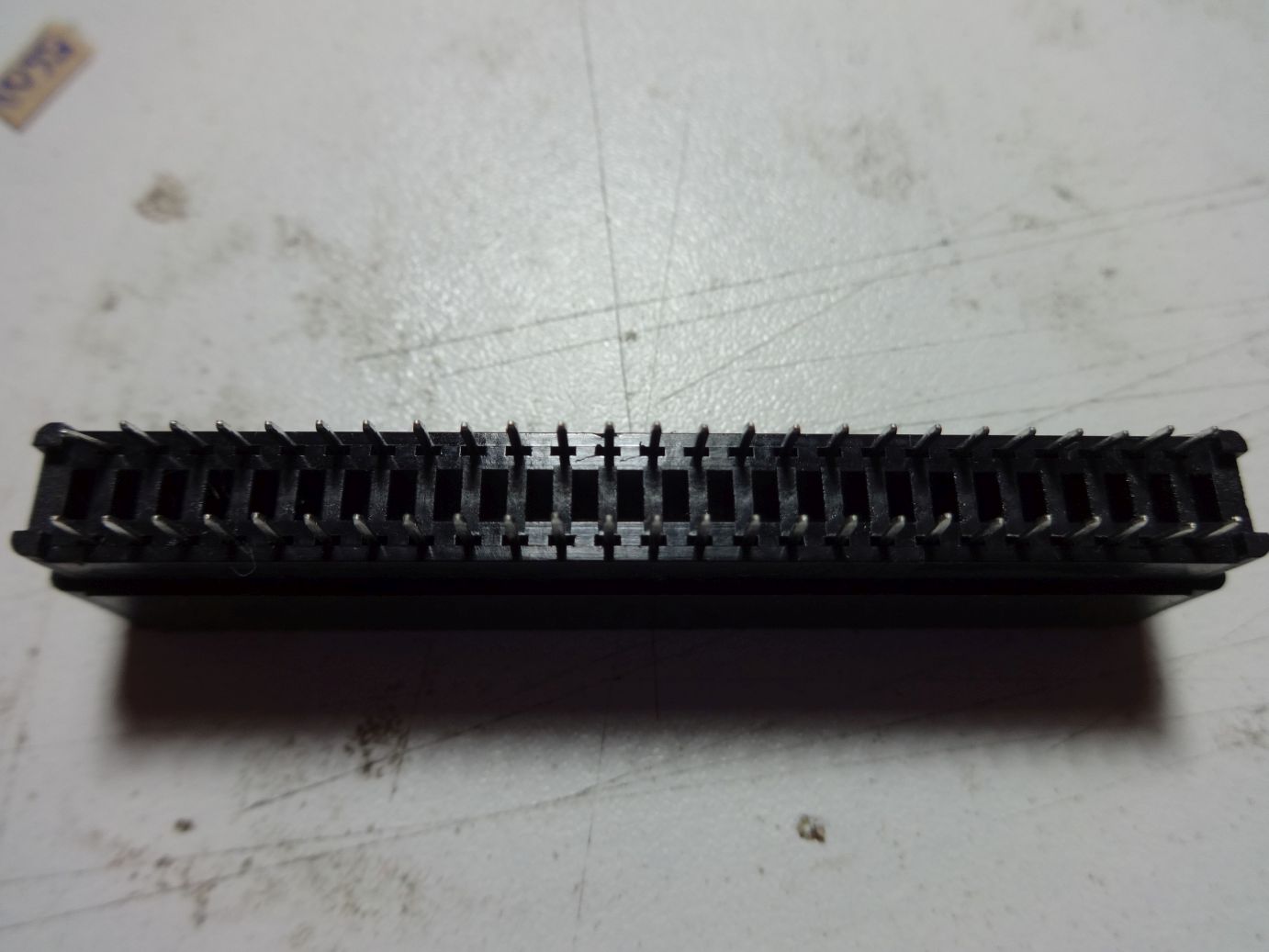

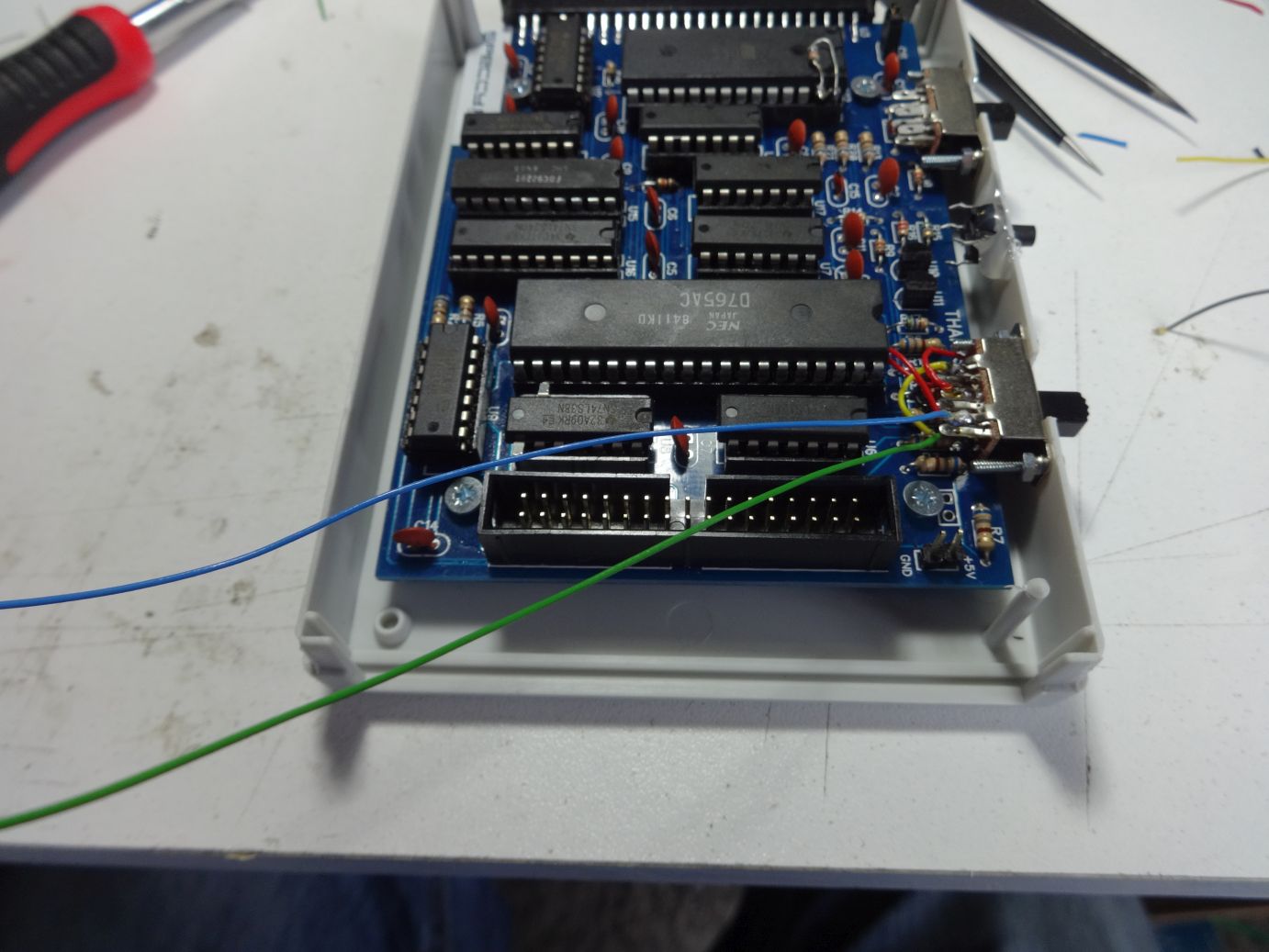

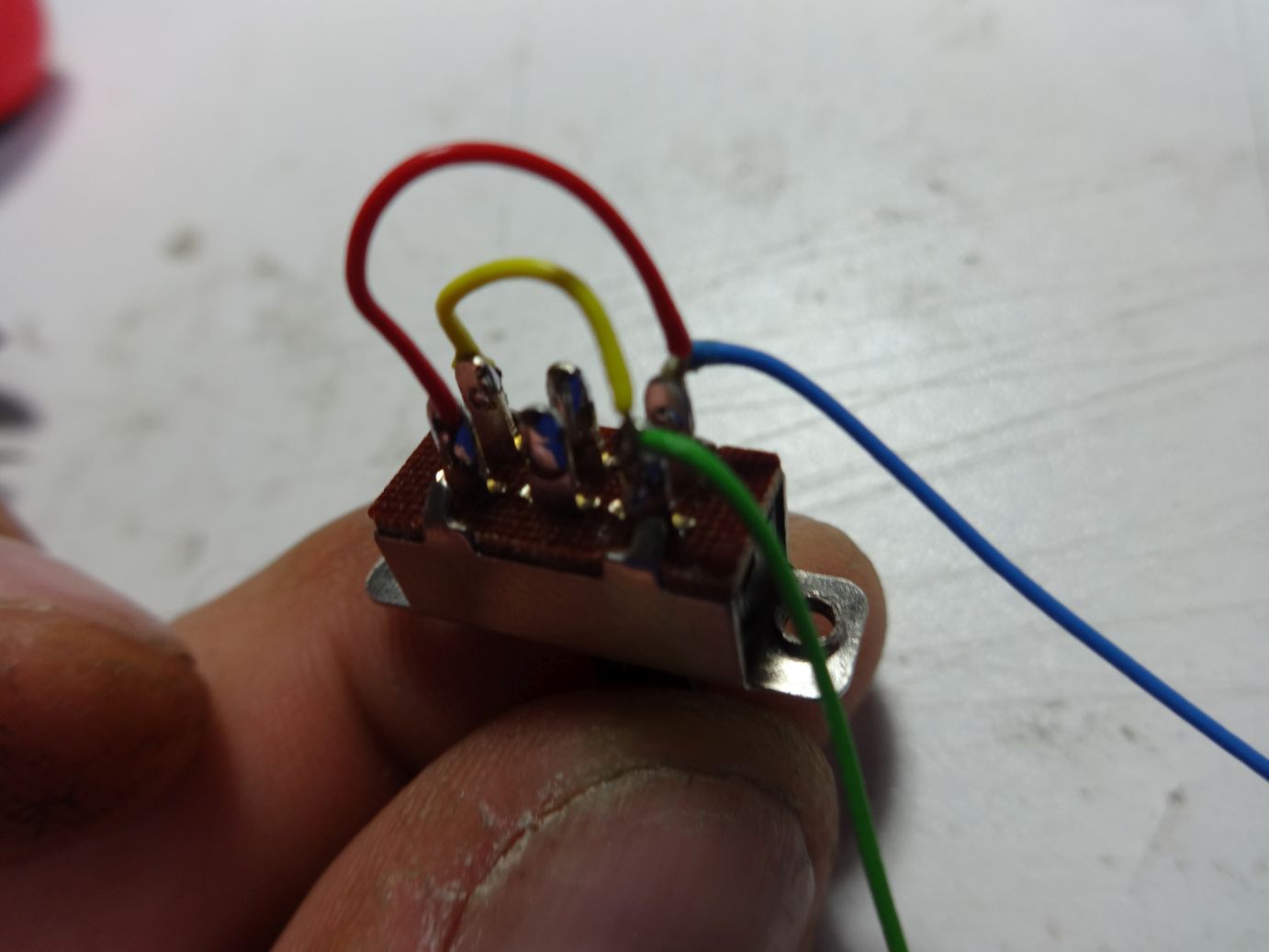

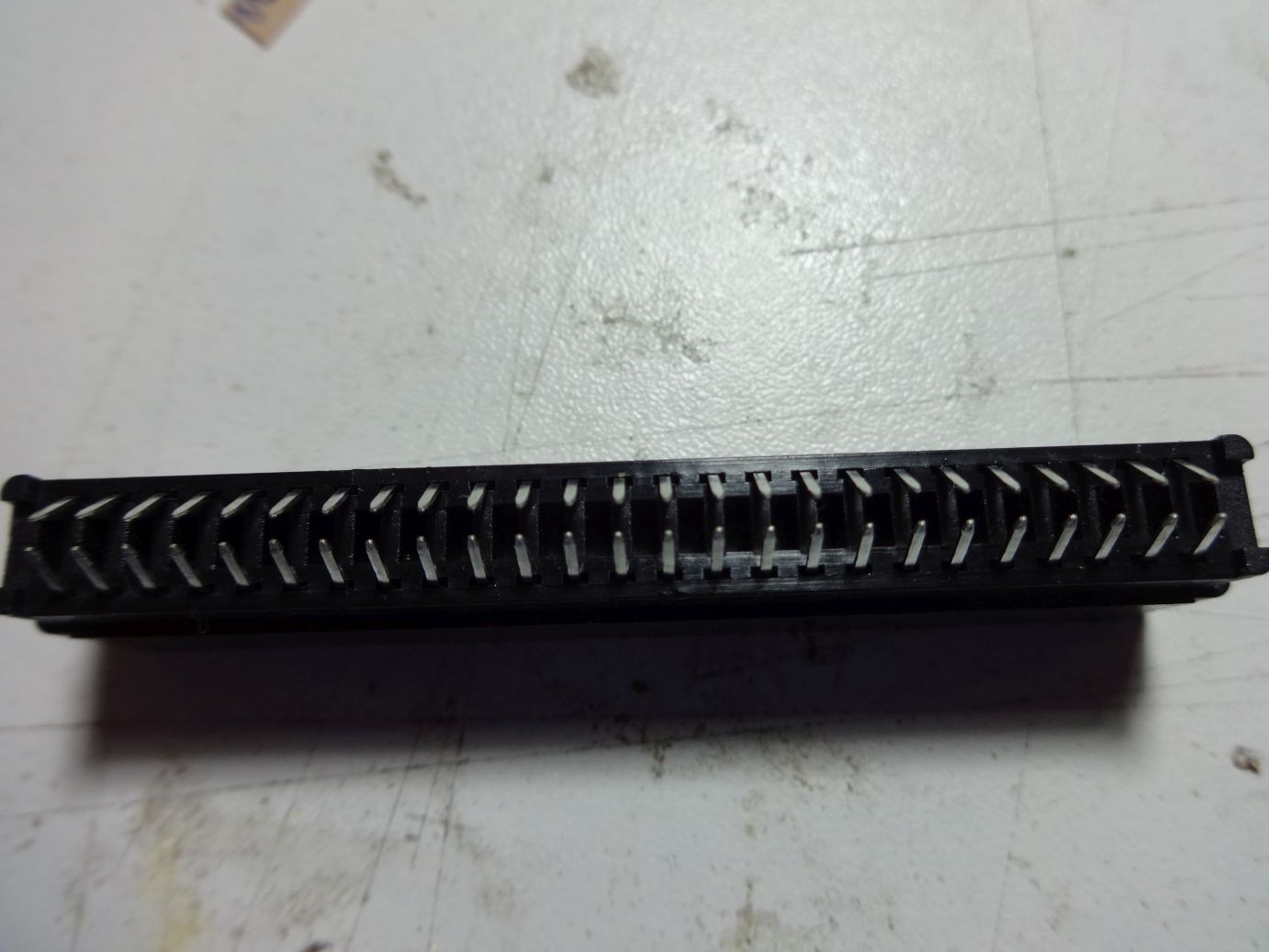

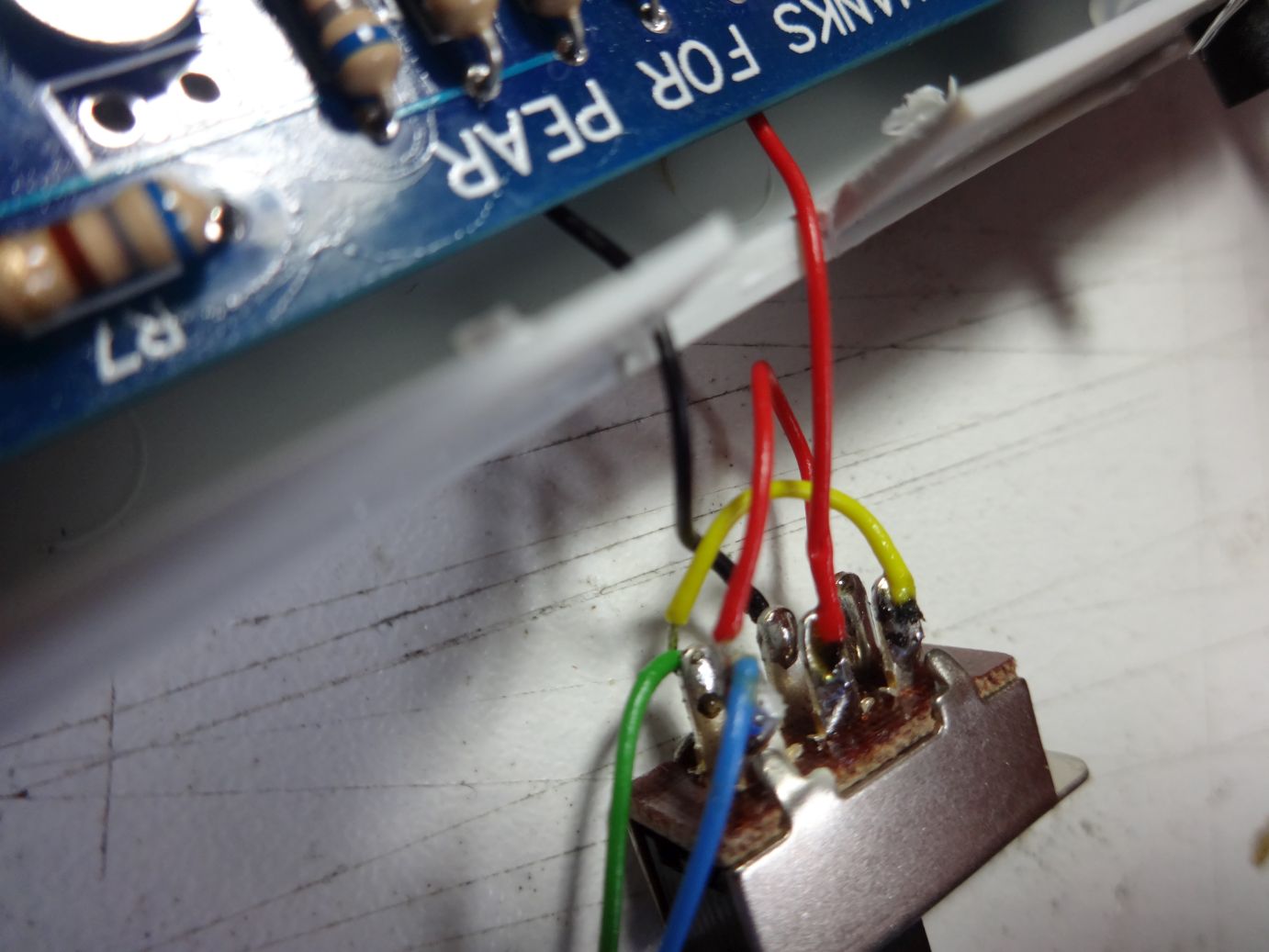

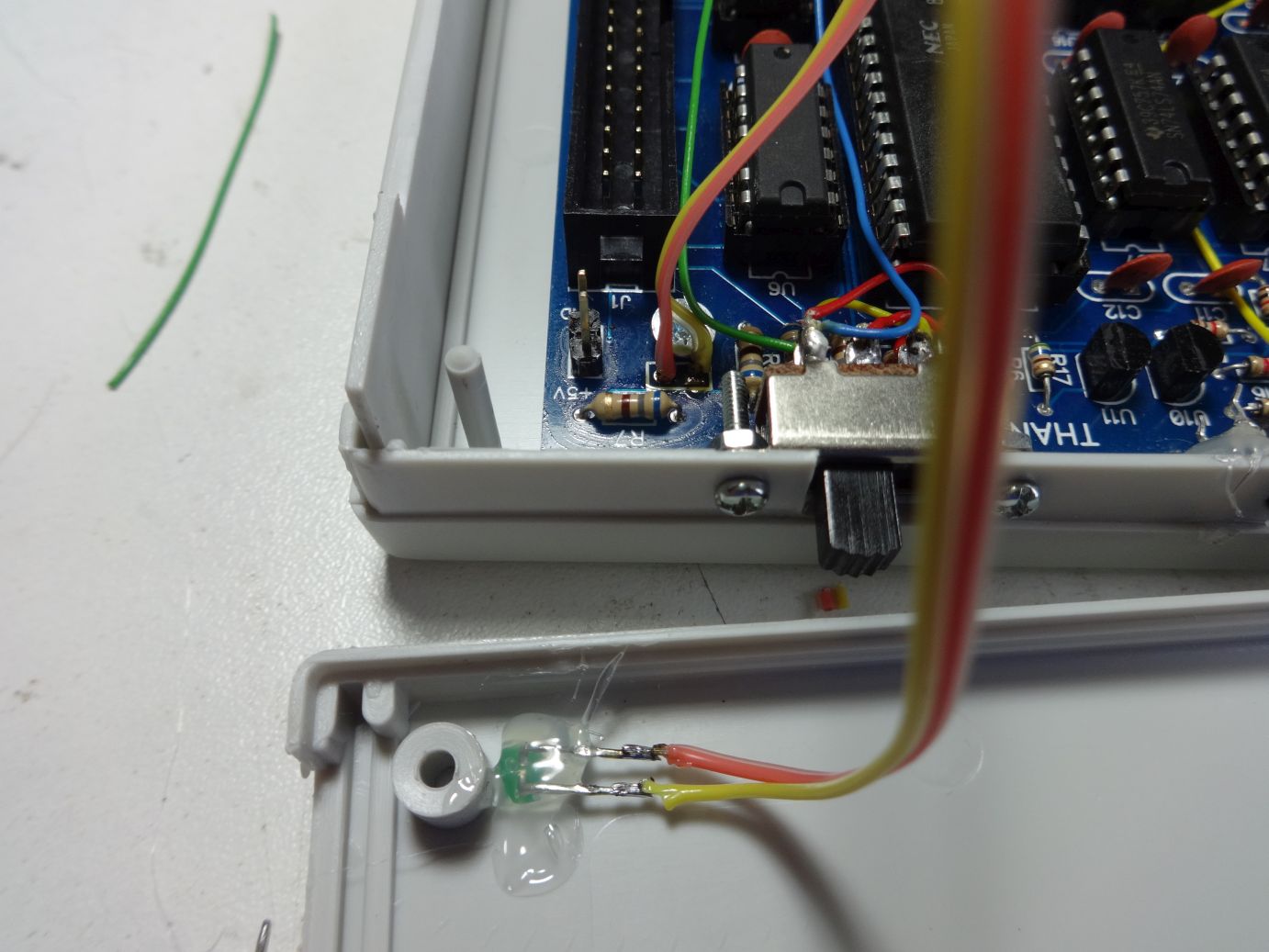

DDI CLONE ASSEMBLY

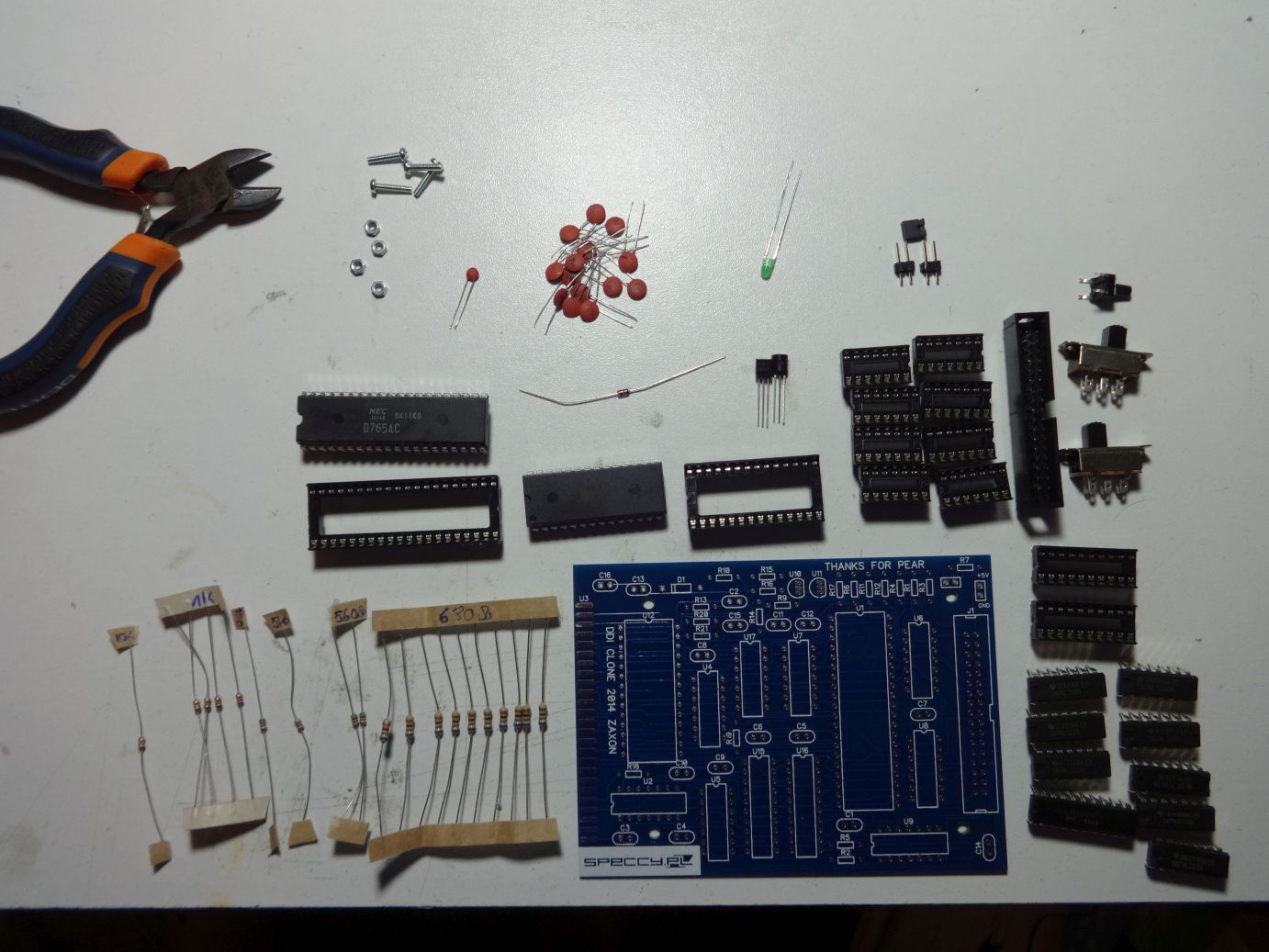

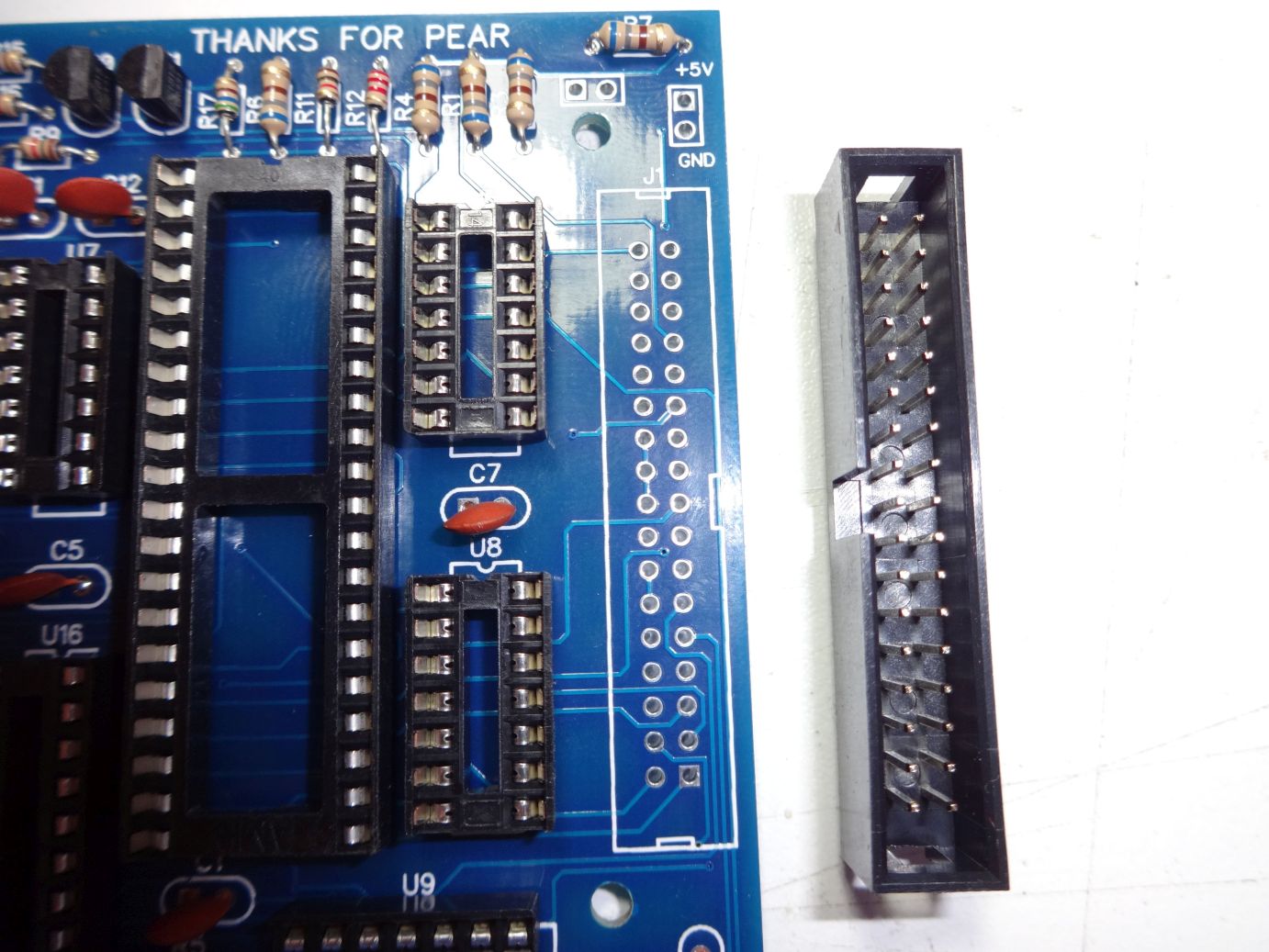

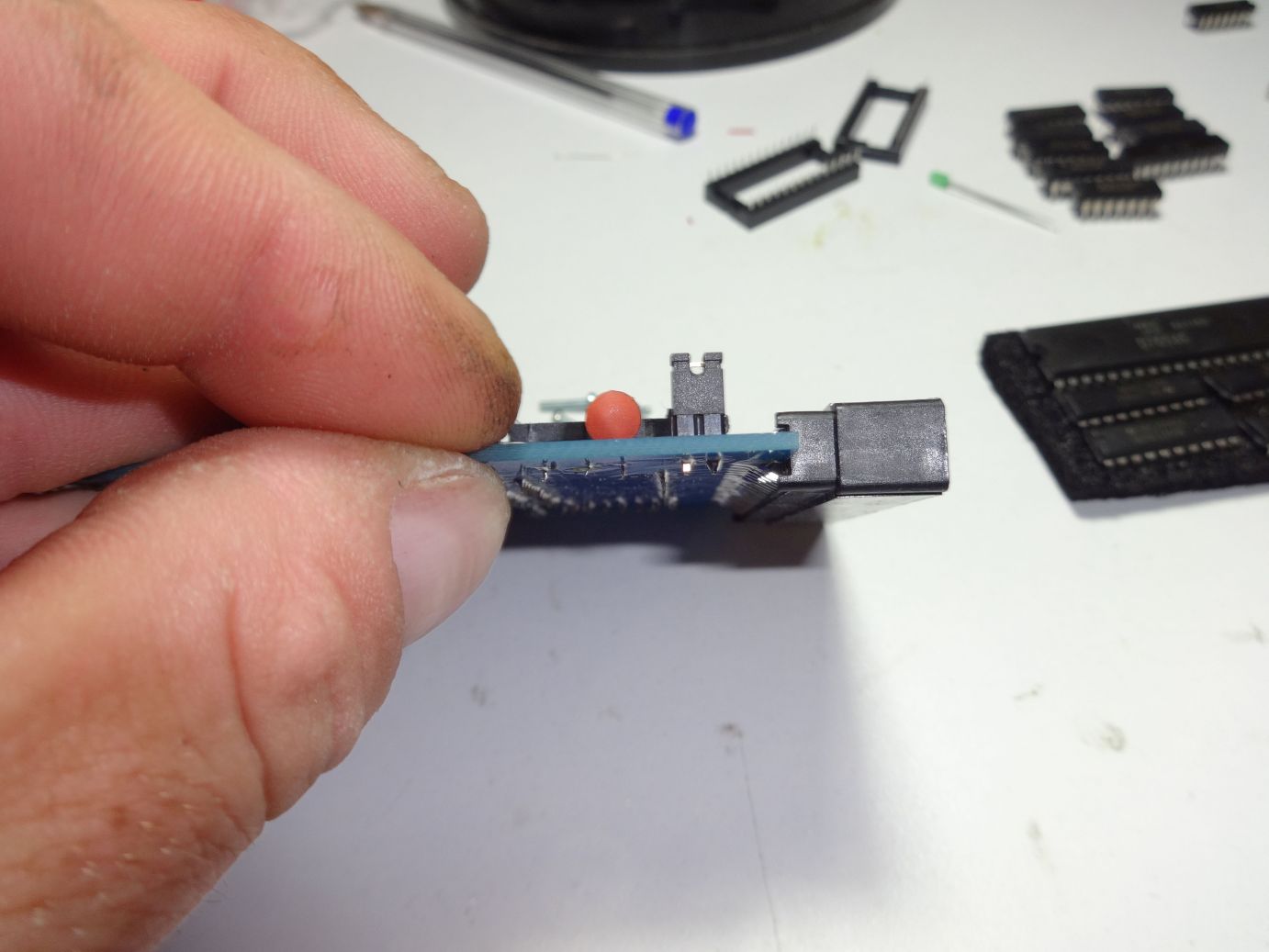

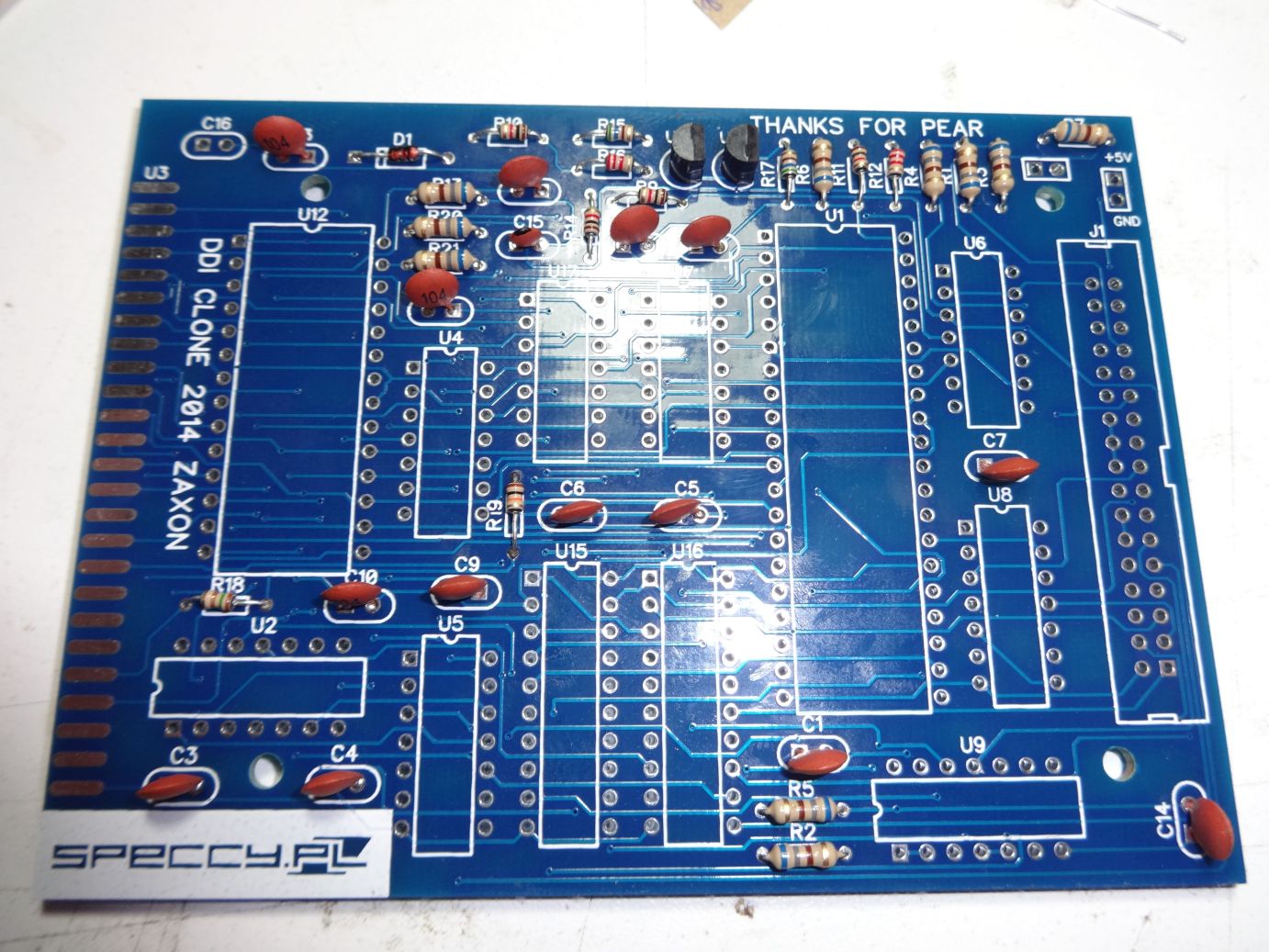

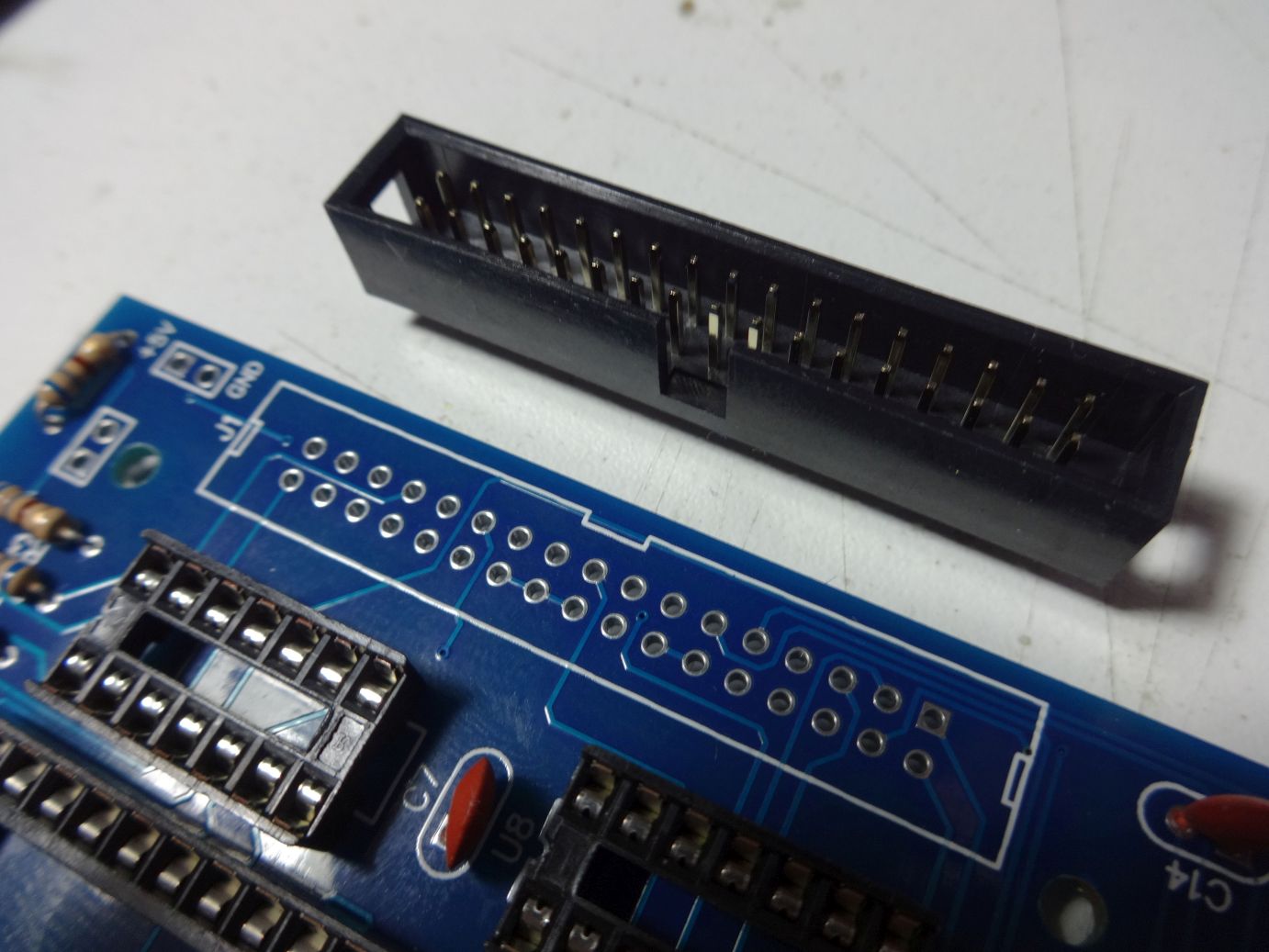

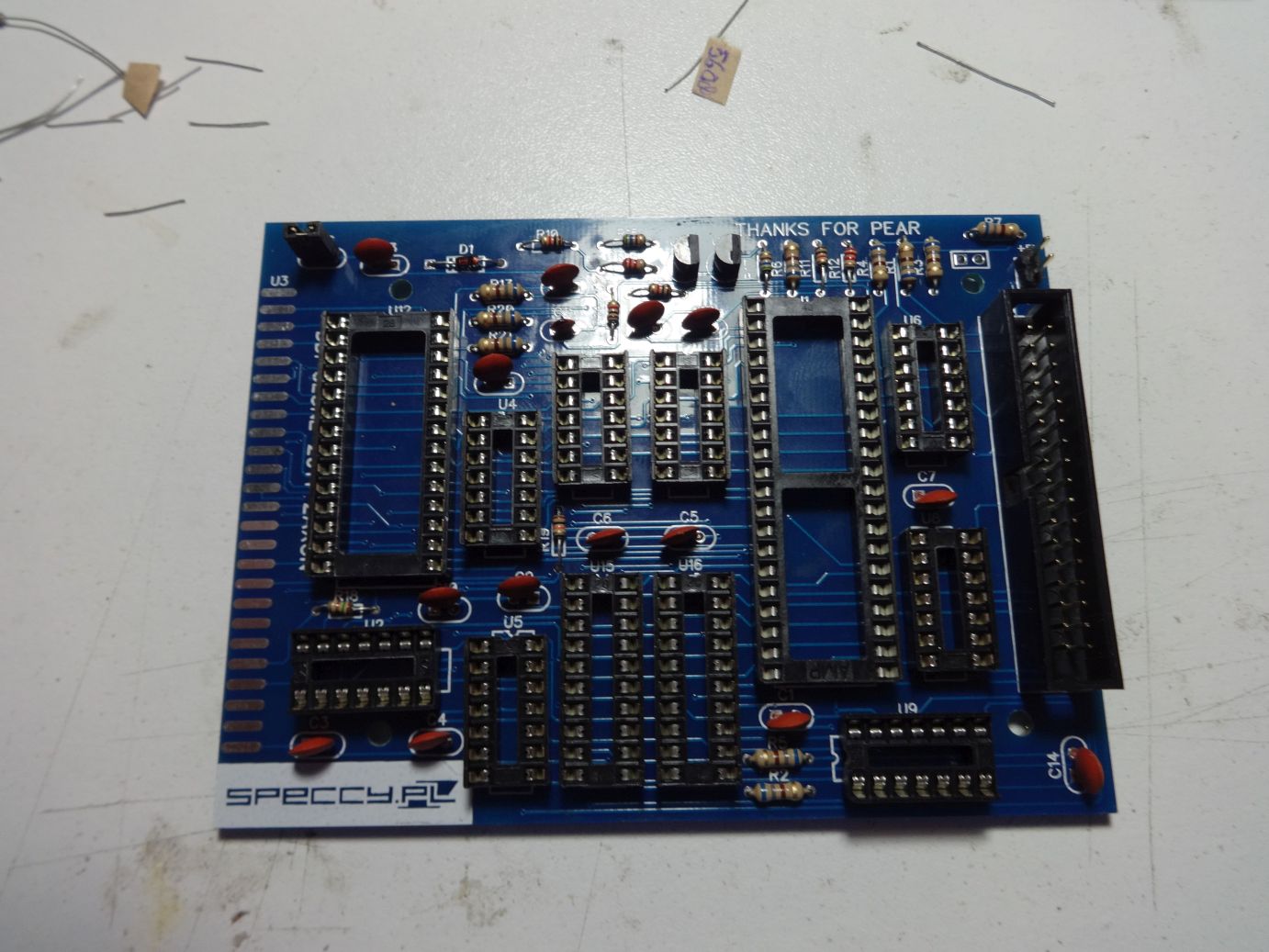

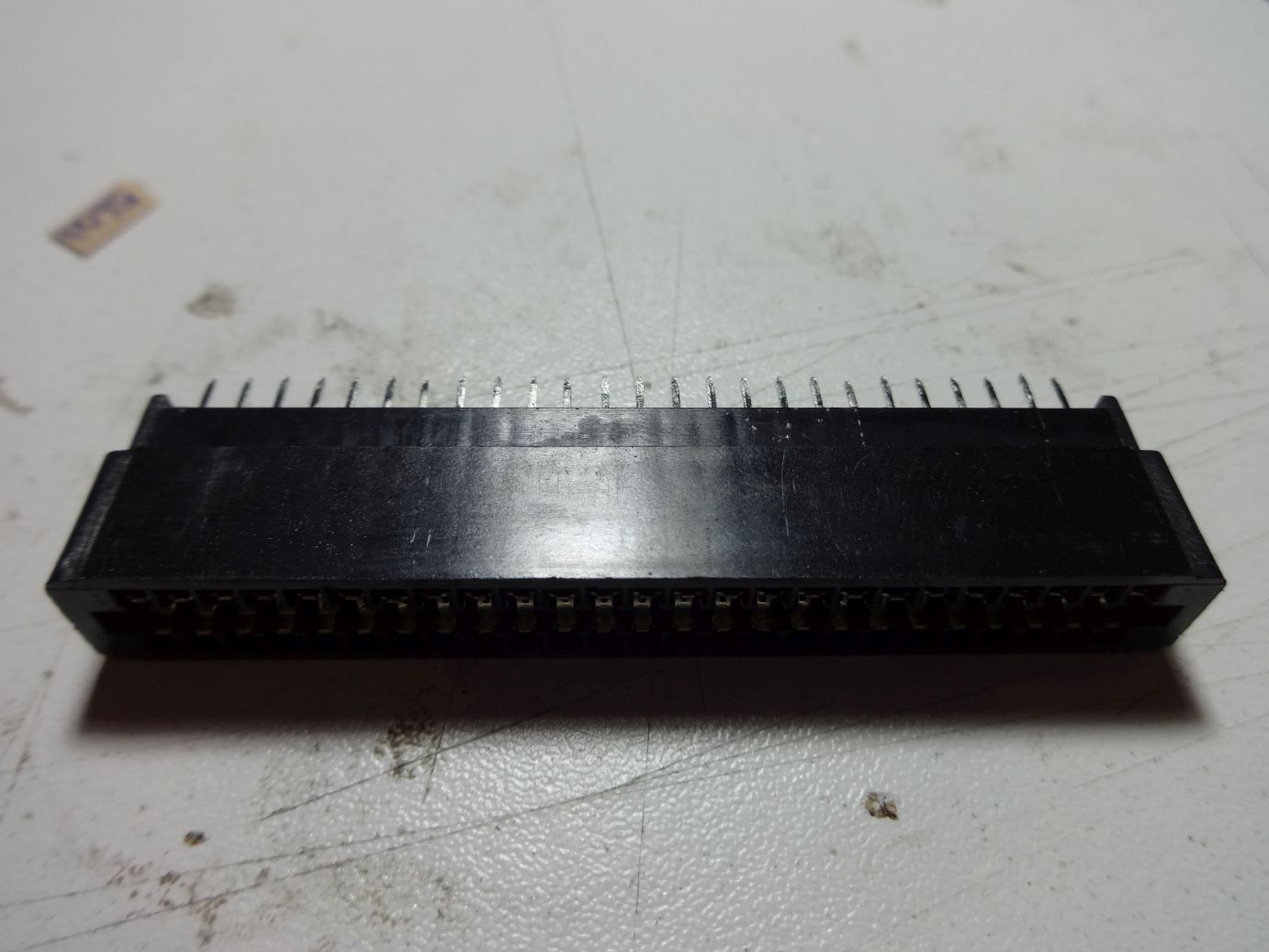

1.Check all components,

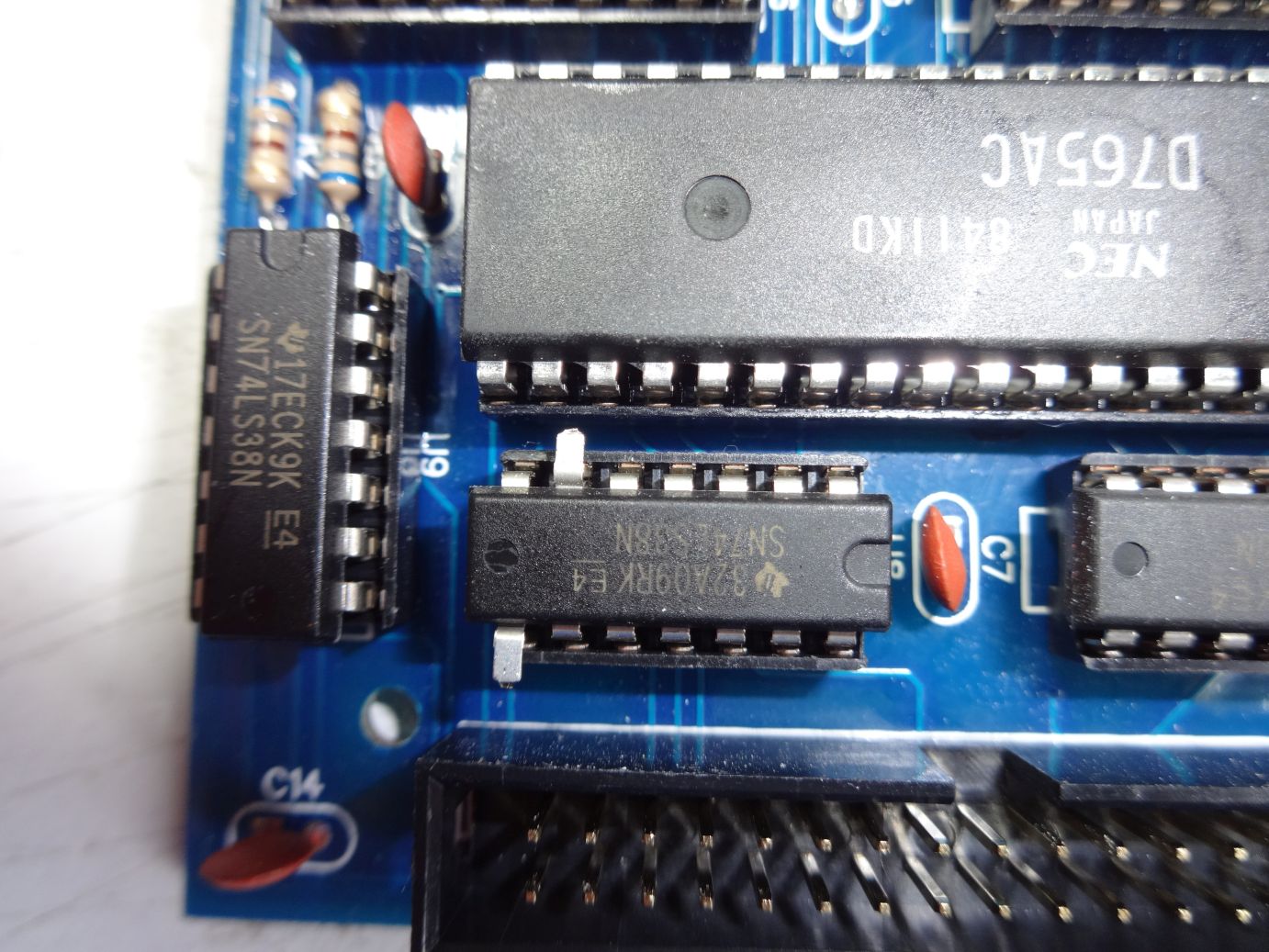

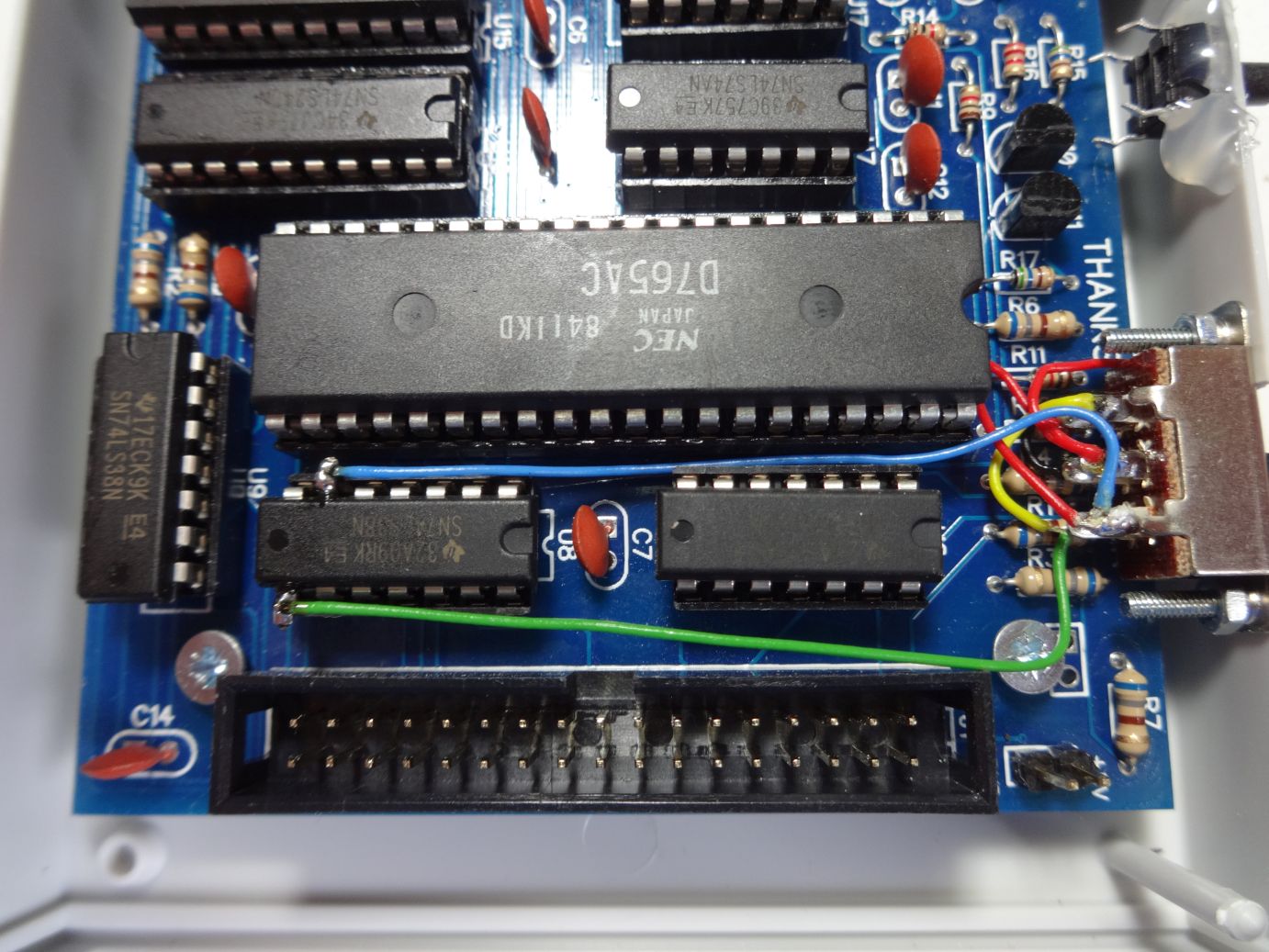

U1 D765AC
U2 74ls27
U4 74ls08
U5 74ls132
U6 74ls136
U7 74ls74

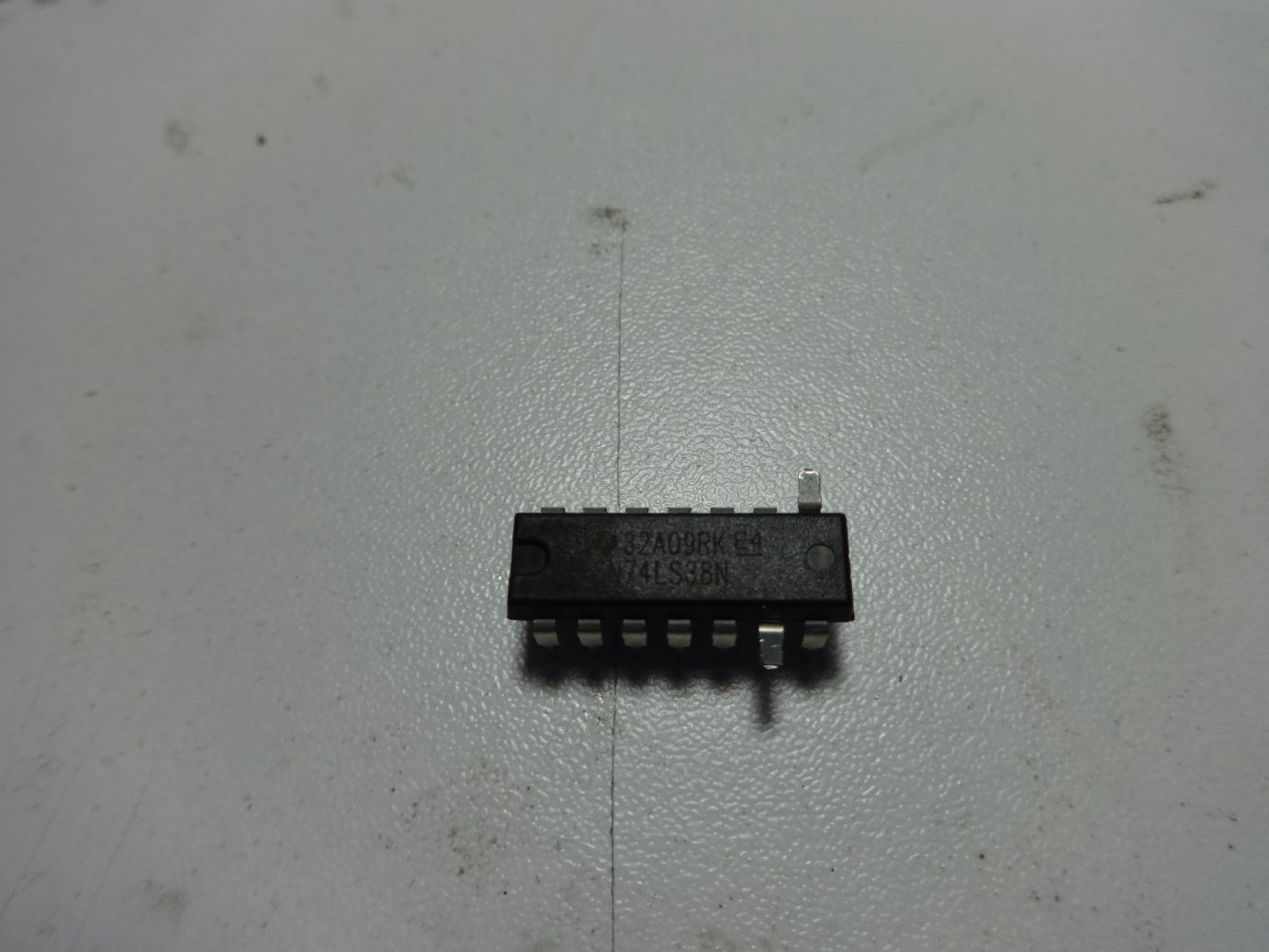

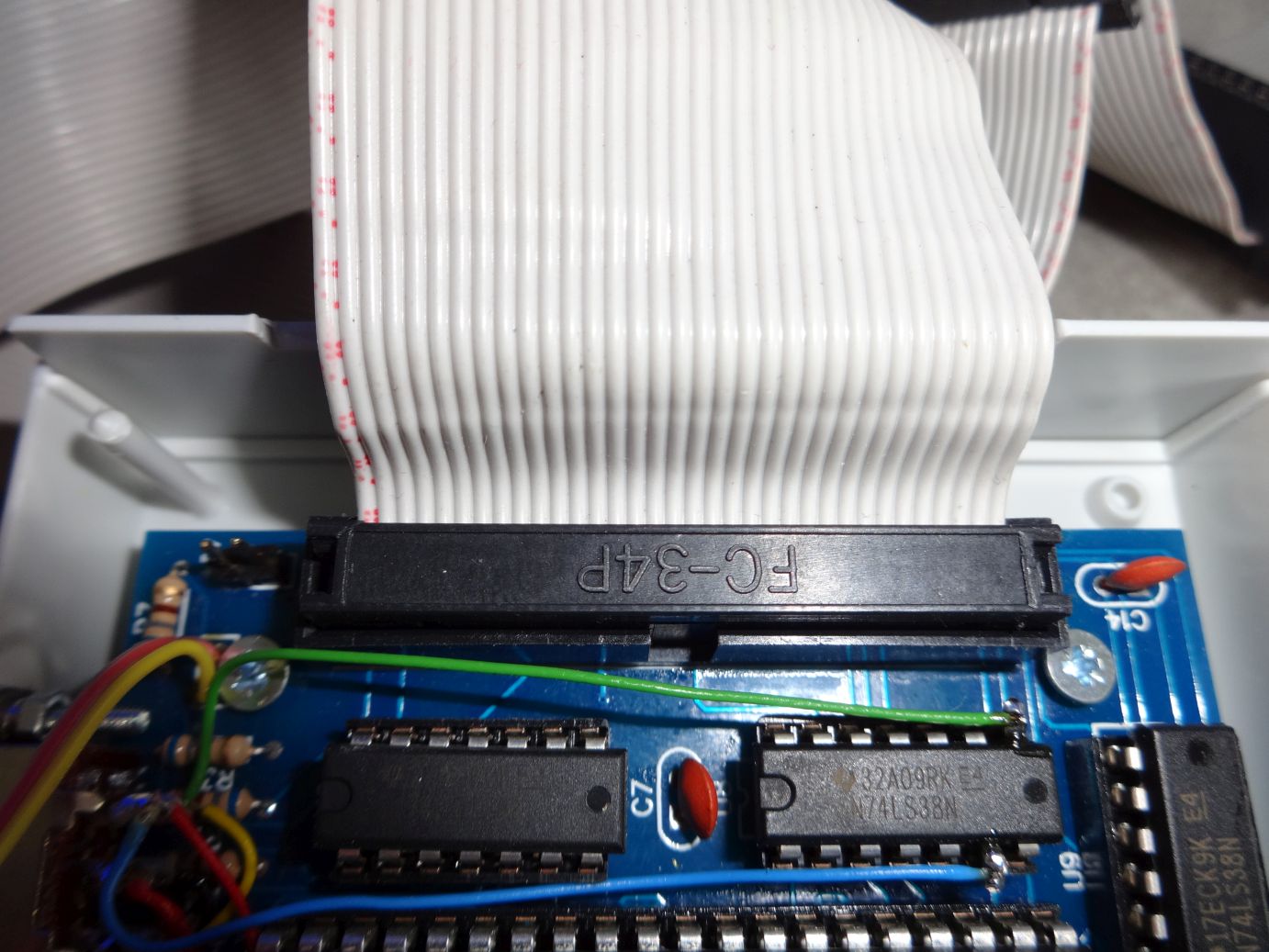

U8 74ls38
U9 74ls38
U10 2sc1815 transistor
U11 2sc1815 transistor

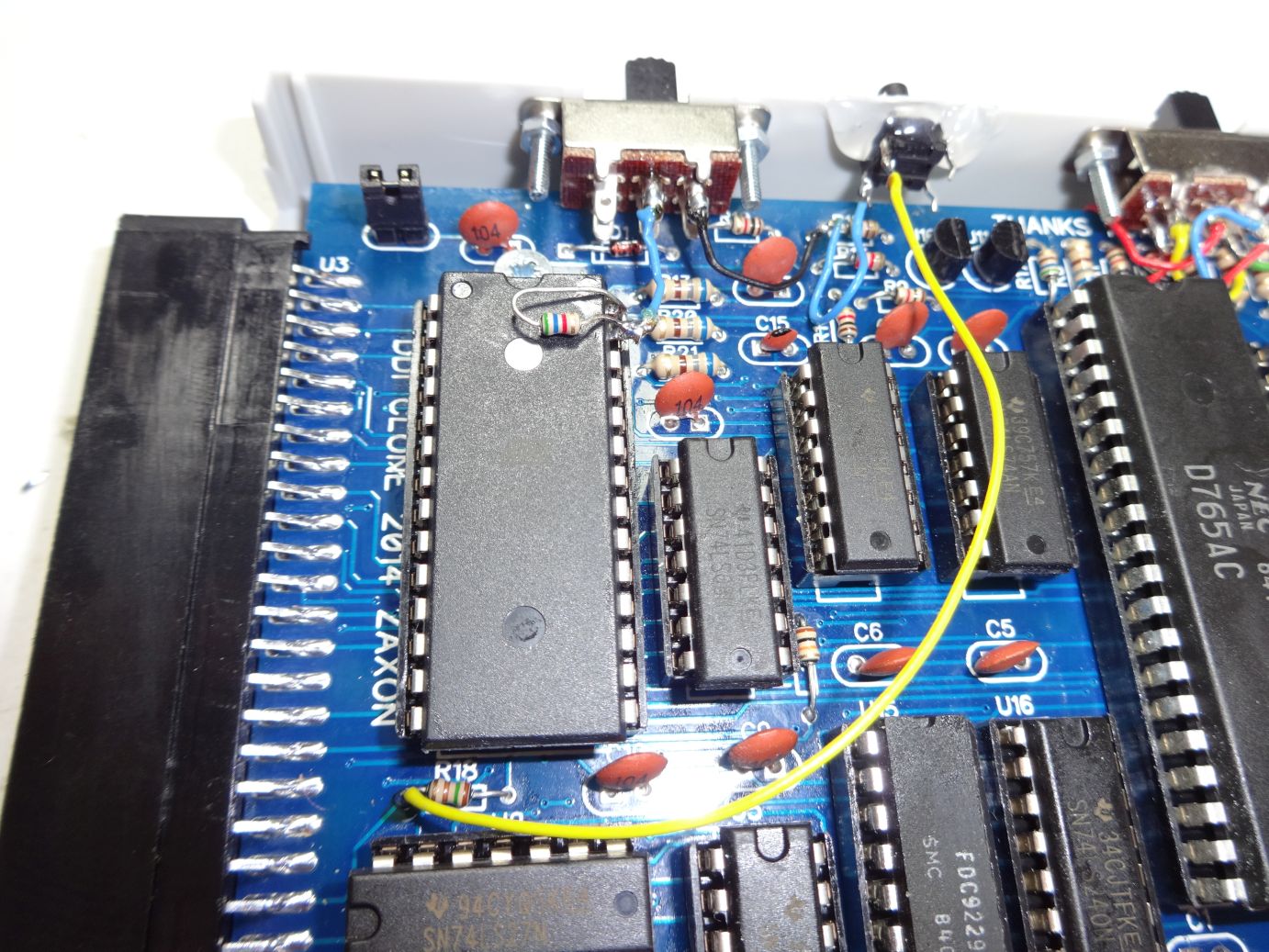

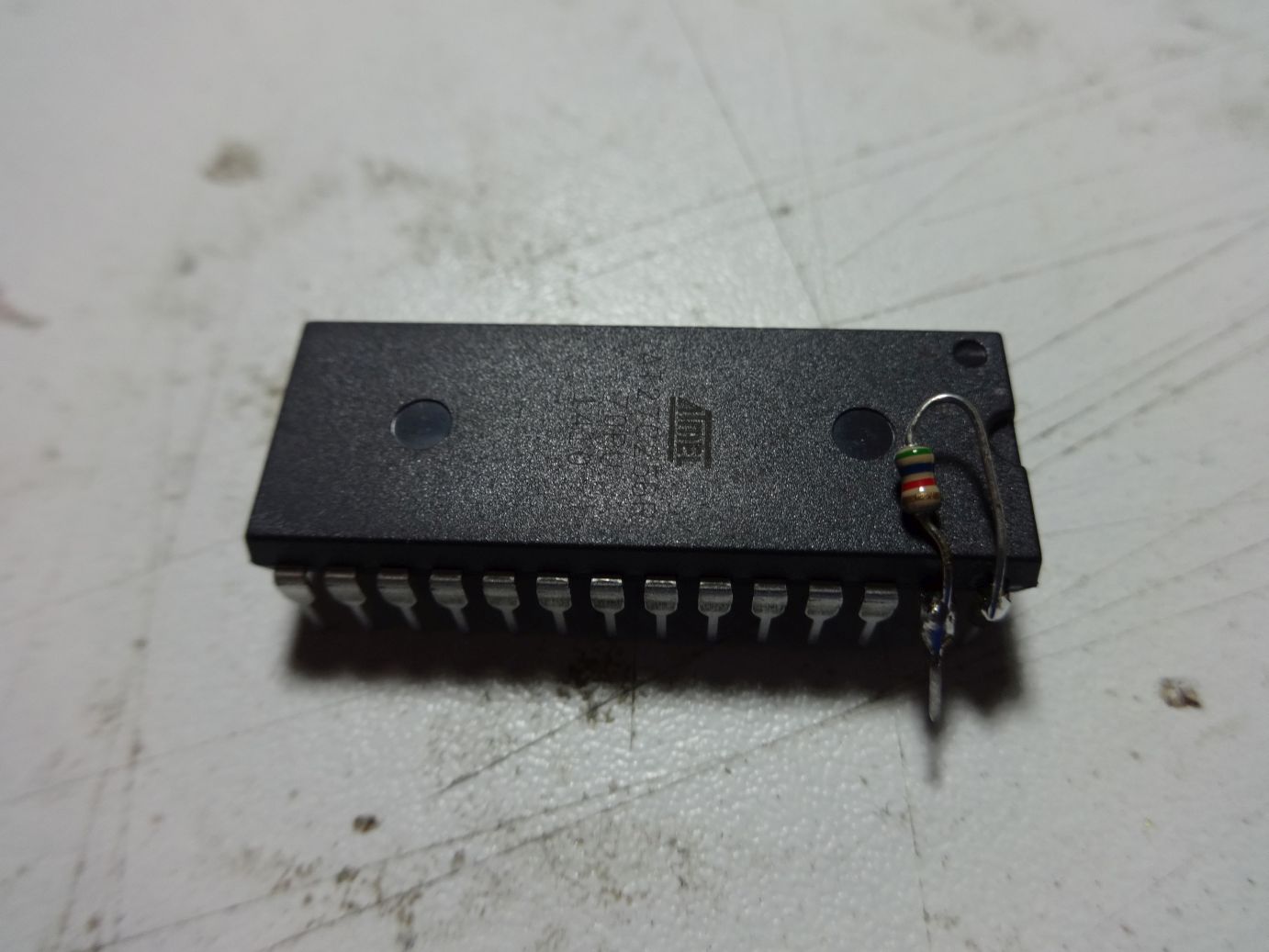

U12 AT27c256
U15 FDC9229T
U16 74ls240
u17 74ls32

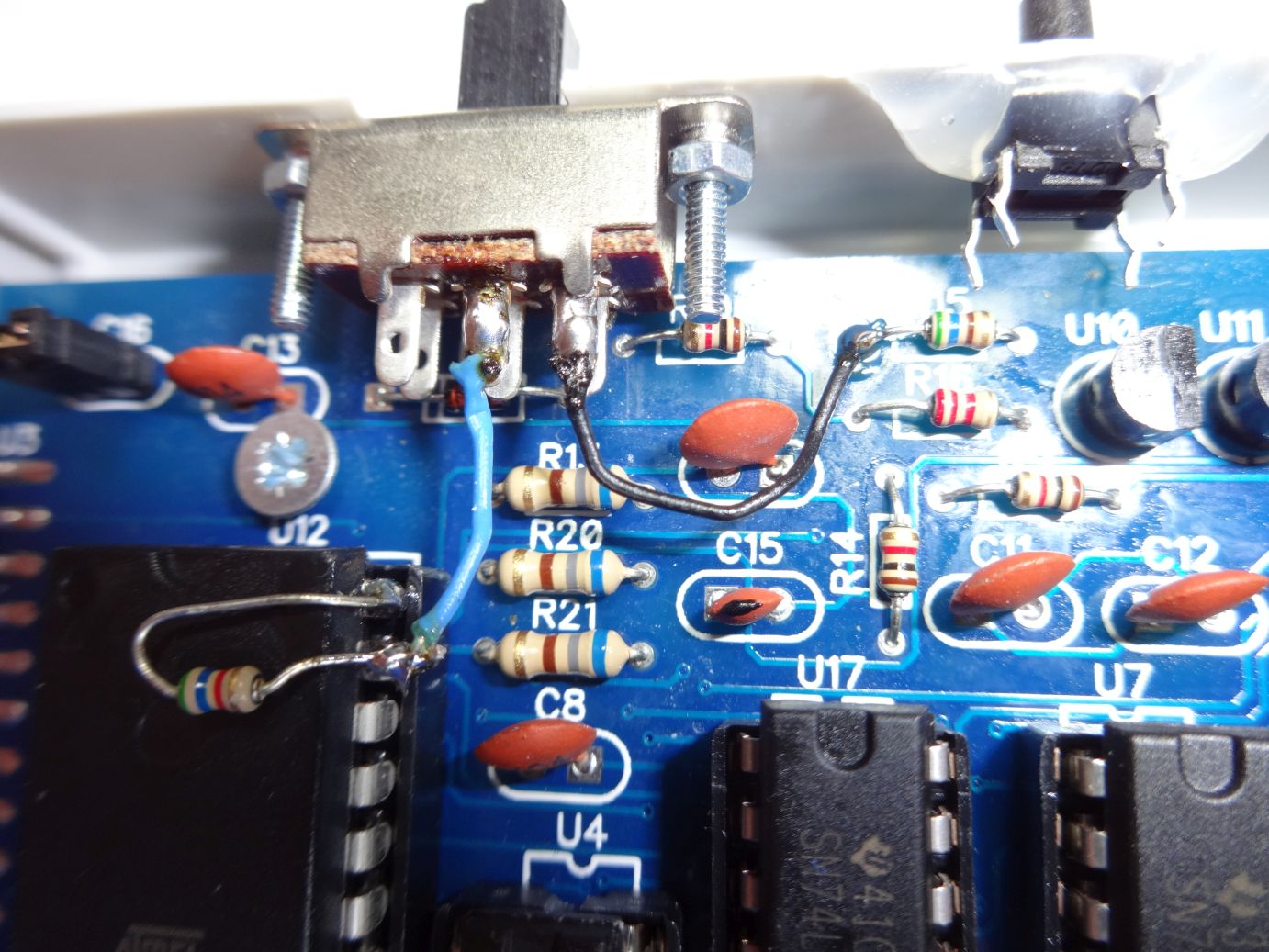

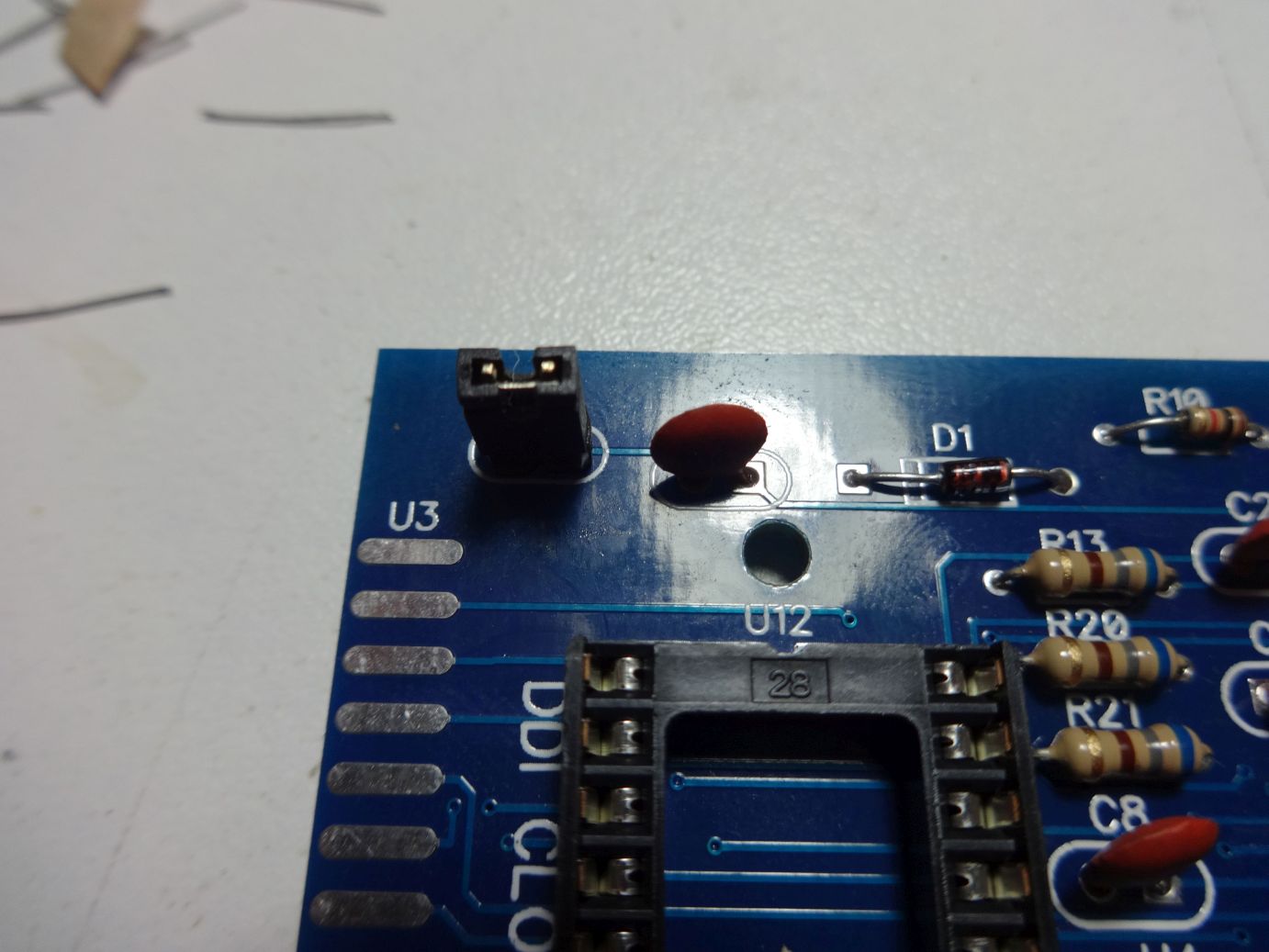

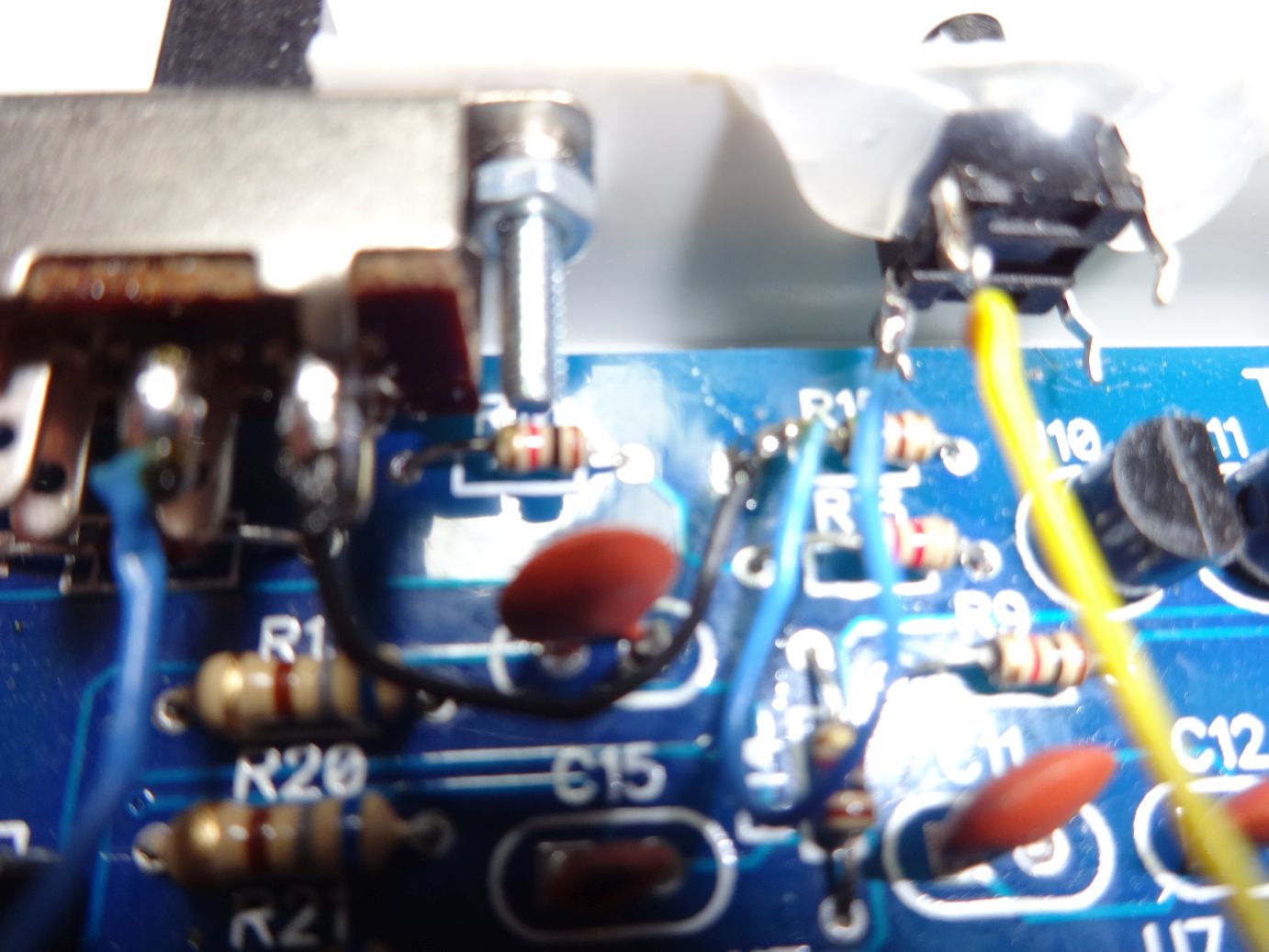

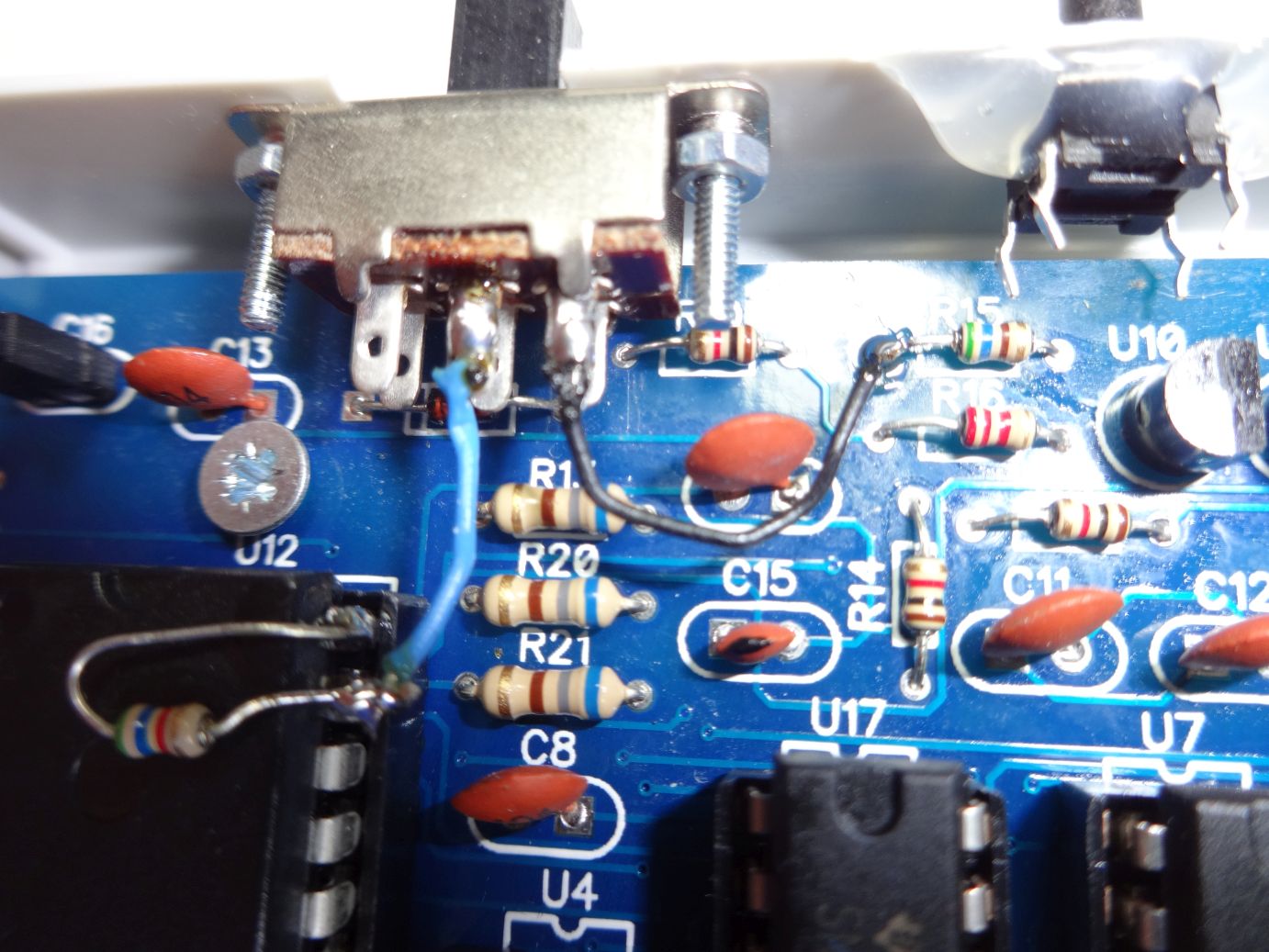

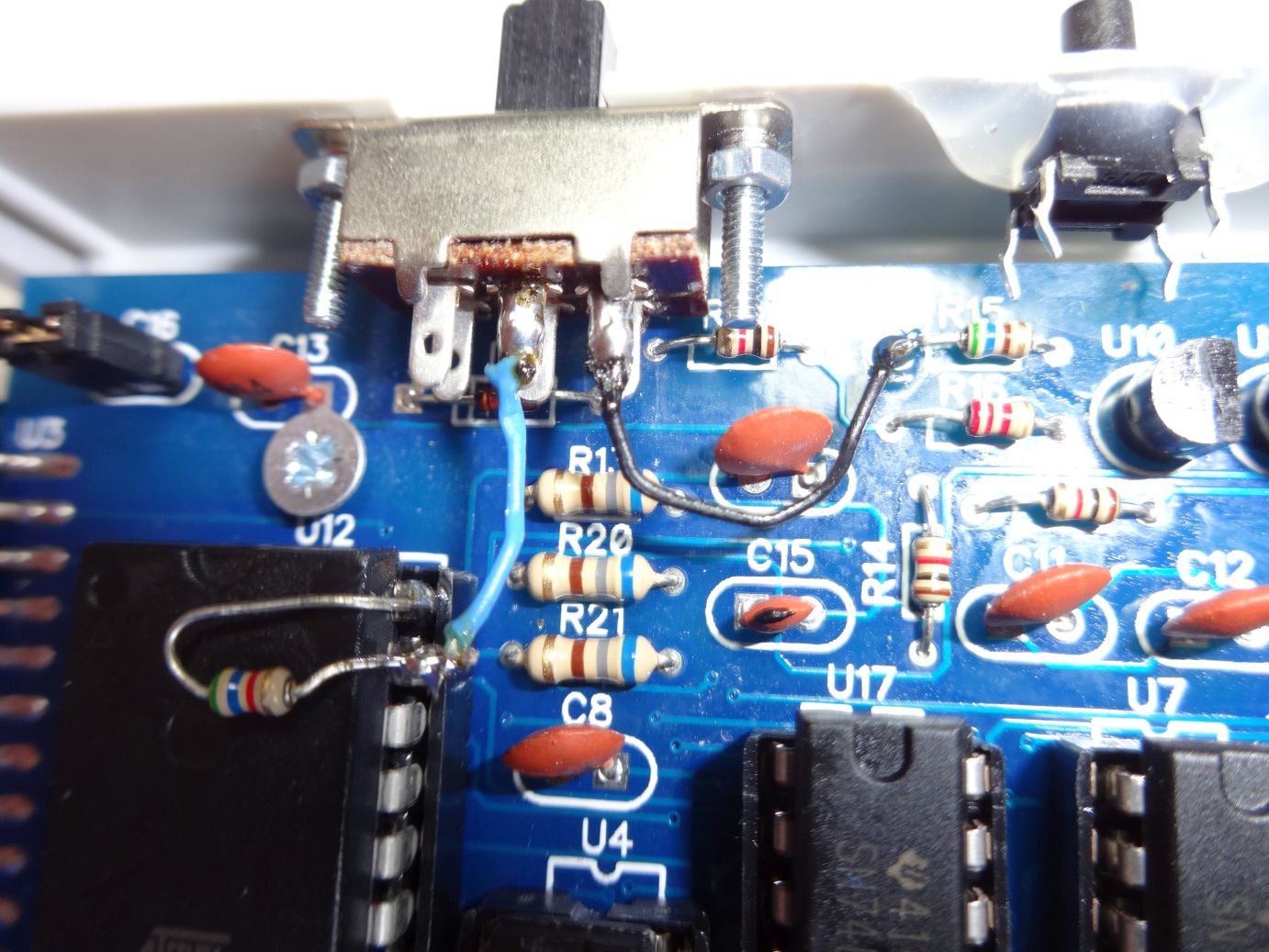

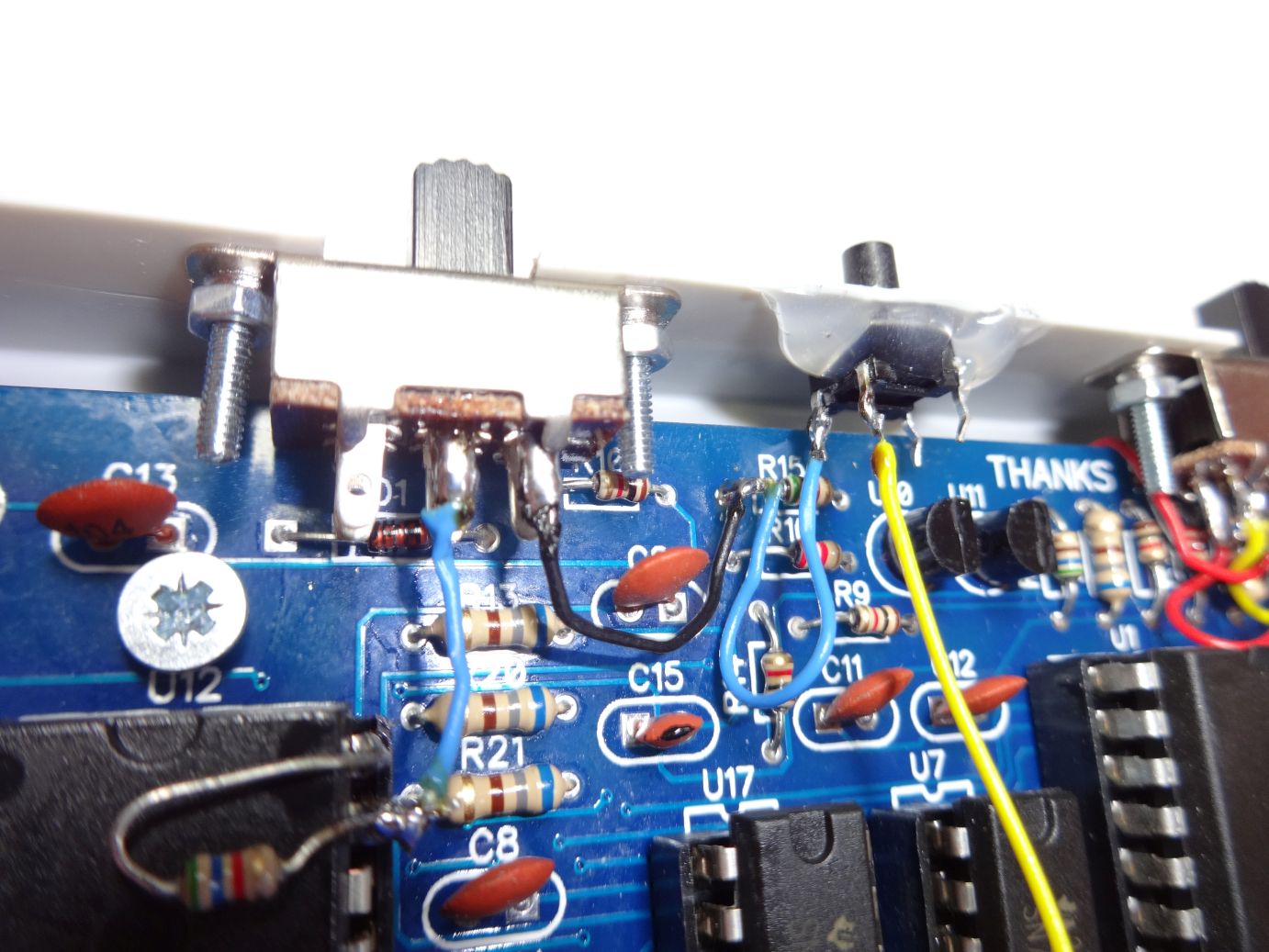

C16- jumper (power from Amstrad)
c15 47pf
Rest cap 100nf
D1- 1n4148
r2,r5,r3,r1,r4,r6,r13,r20,r21 - 680 om
r12,r16 - 2k2
r11,r10,r14,r9 - 1k
r15,r17 - 560 om

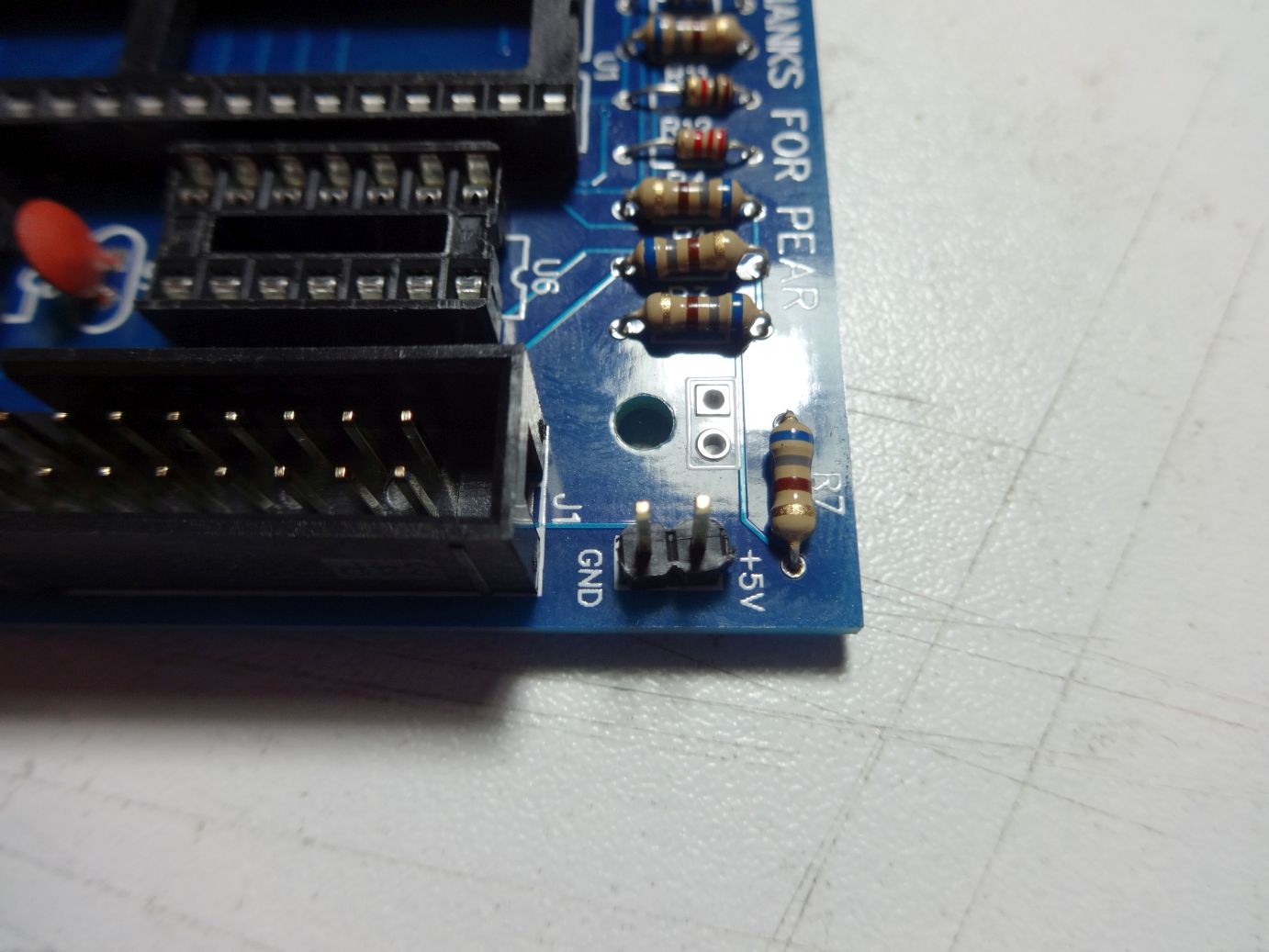

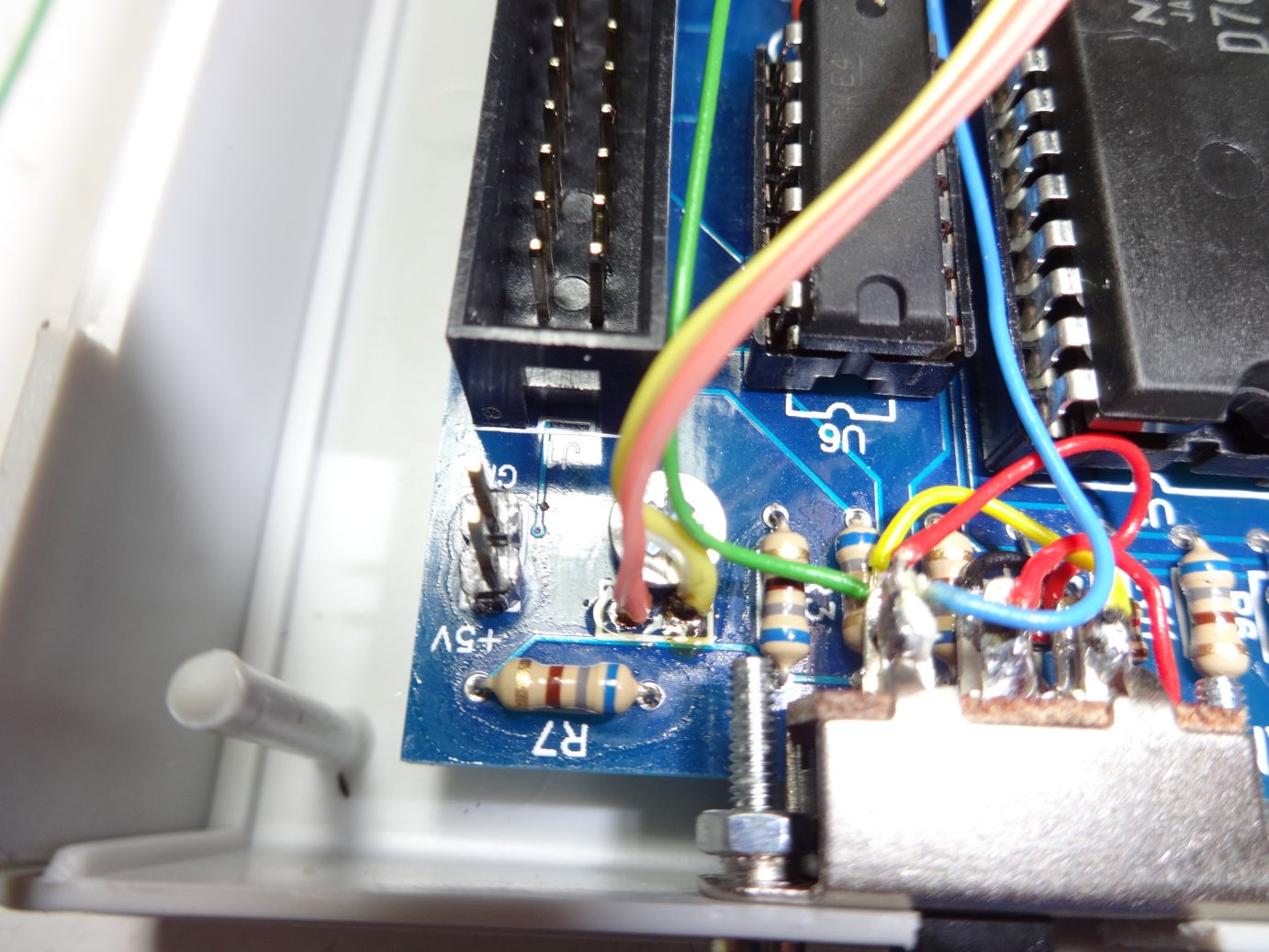

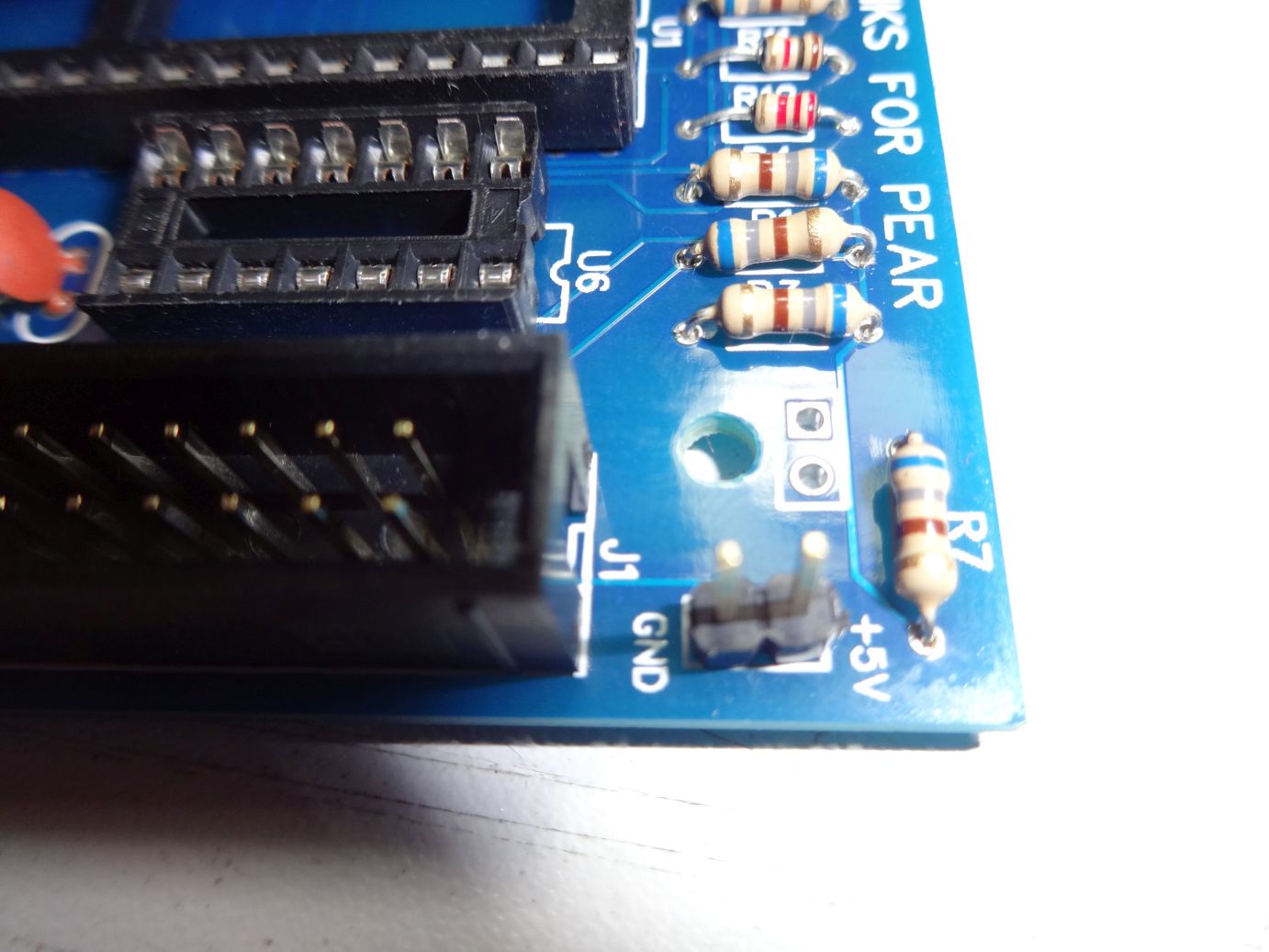

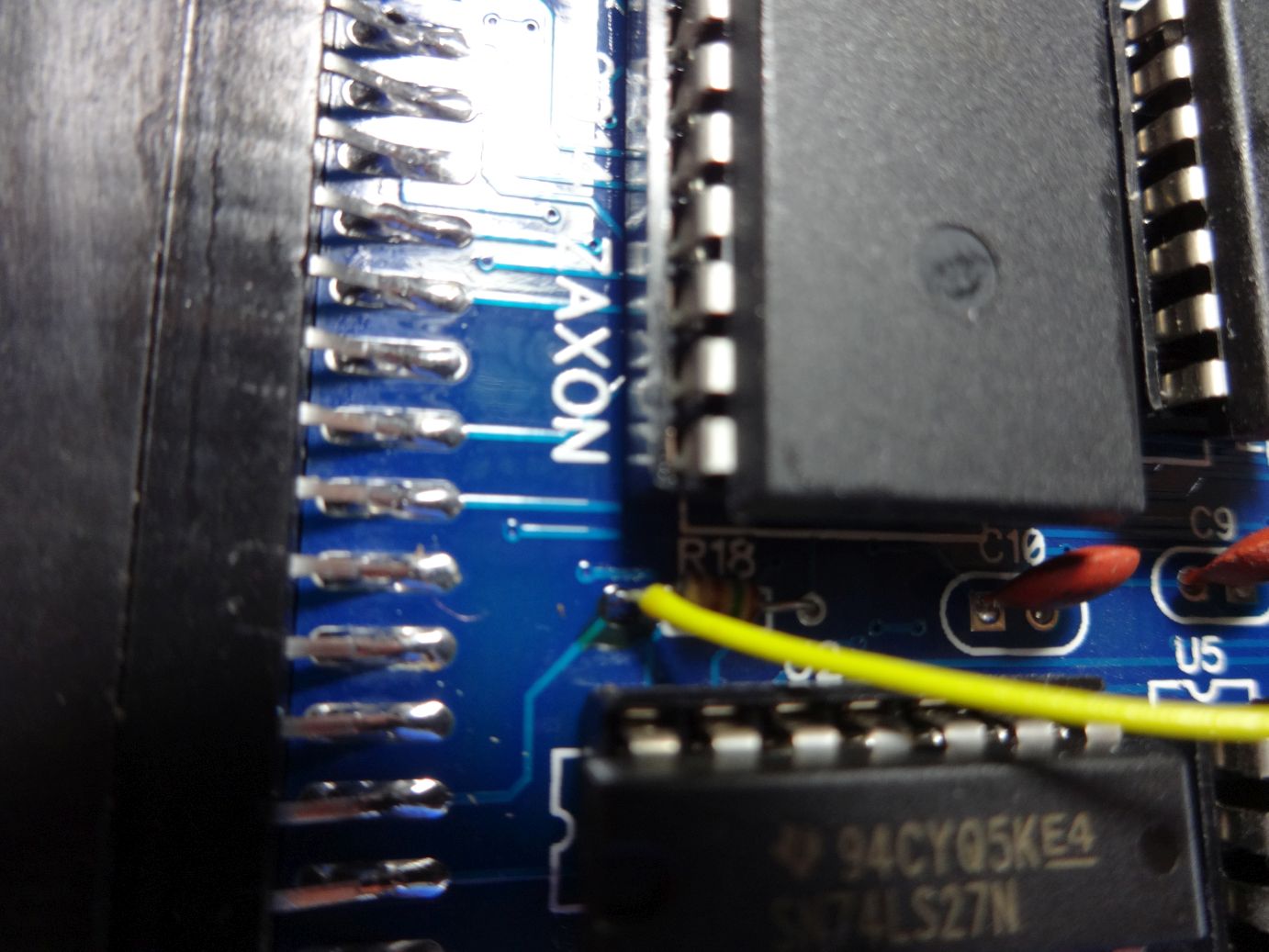

r18 180 om
r19 10k
